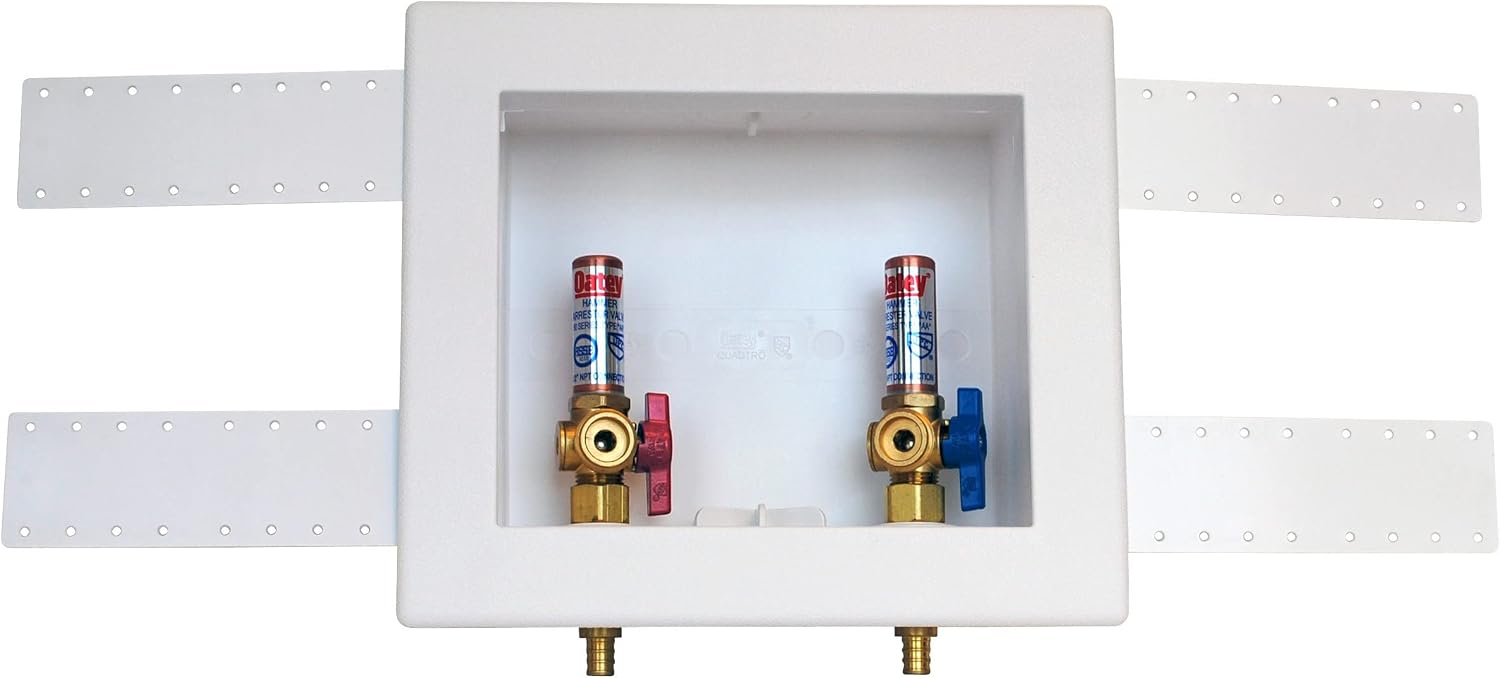

Patented twist-n-lock valves allow the user to position the valves to the left, right or on either side of the drain, enabling greater flexibility on the job. A quarter turn test plug eliminates the need for knock-out caps that can fall down the drain.

• Allows for right, left, or center drain and bottom or top mount valves.
• 2" drain opening fits PVC or ABS Sch. 40 DWV pipe.
• Box Dimensions: 8-3/4"W x 7-1/2"H x 3-5/8"D.
• Faceplate Dimensions: 11-3/4"W x 10-1/8"H.
• "Lock & Load" valve mounting system for quick and easy positioning.
• Easy to remove knockout, Patent Pending Hammer Valves.
• Snap-on Faceplate Frame accommodates up to 1" drywall.
• Box and support brackets made from high-impact polystyrene
• 4 support brackets included for mounting
• Single lever valve mounting hub locks into position in seconds

Weight	2.9 lb
Height	7.50 in.
Horse Power	1/3
Length	3.63 in.
Material	Plastic
Width	8.75 in.
Inventory Number	CHEM38542
MPN	38542
