• No Finish
• Solid brass construction

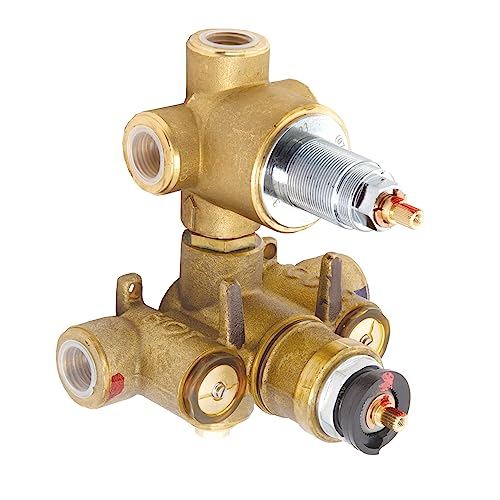

• Rough-In with Integrated 3 Way Diverter with share function ports 1 and 2, and Shut Off Control.
• Built in Check Valve s with service stops
• Flow rate of 8.0 gallons per minute at 60 psi
• Provides anti-scald protection and temperature regulation
• High-temperature safety stop ensures water temperature maximum is 100F (37.7 C)
• 1/2" NPT female thread (inlet and outlet) valve body
• Mounting tabs located on rough-in for secure installation option
• Requires Newport Brass Thermostatic Trim (many options available, sold-separately)

Product Specification

Installation Sheet

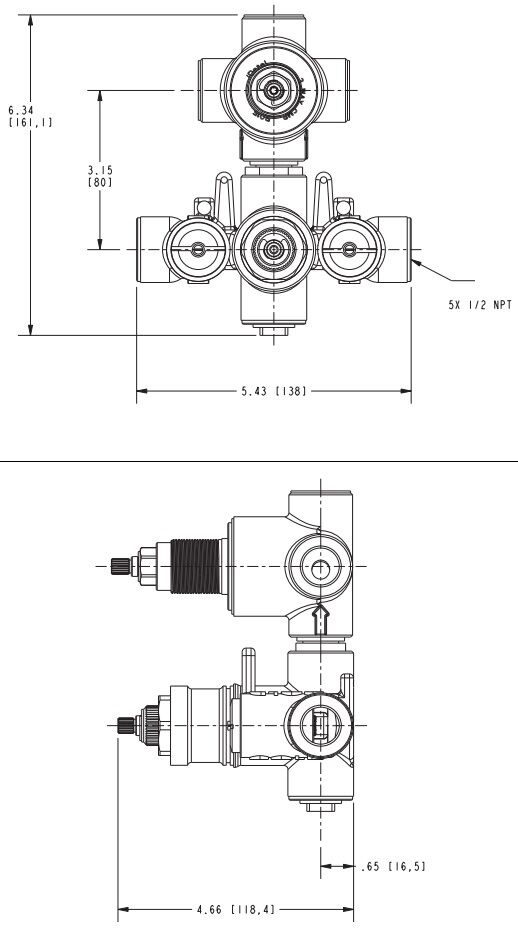

Parts Diagram

Glossary of Terms

Product Care

Warranty

Weight	5.0 lb
Height	6.50 in.
Horse Power	1/3
Length	8.00 in.
Material	Brass
Room	Bathroom
Type	Tub & Shower Valves
Width	8.25 in.
Inventory Number	NEW1-743
MPN	1-743
