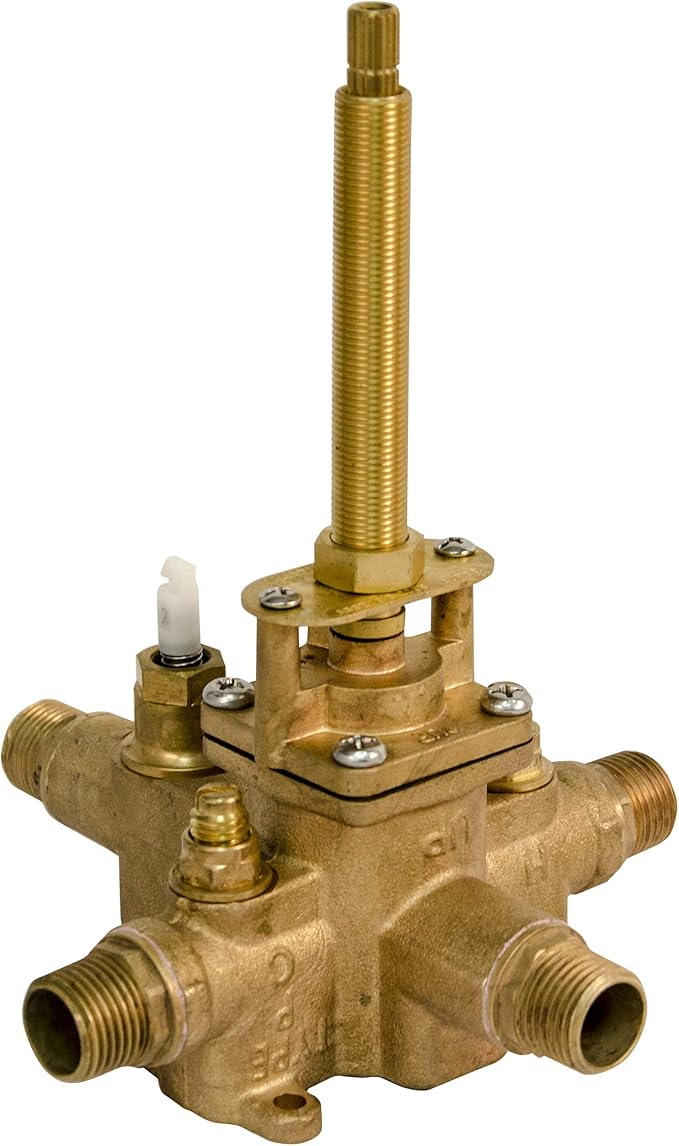

• No Finish
• Solid Brass Construction
• 4 port with service stops
• Universal 1/2" NPT & direct sweat connections for installation flexibility
• Provides anti-scald protection and temperature regulation
• Pressure-balancing technology maintains water temperature within +/- 2 degrees Fahrenheit
• High-temperature safety stop ensures water temperature stays below maximum setting
• Integral hot and cold inlet stops ensure easy cartridge access. Integral pull-style diverter with automatic reset.
• Mounting tabs located on rough-in for secure installation option
• 1-1/16†functional depth (center-back) enables back-to-back installation
• Maximum handle rotational requirement of 150 degrees to achieve maximum temperature setting
• 5.8 gpm (gallons per minute) flow rate (@ 50 psi)

Product Specification

Installation Sheet

Parts Diagram

Glossary of Terms

Product Care

Warranty

Weight	3.06 lb
Height	6.00 in.
Horse Power	1/3
Length	9.00 in.
Room	Bathroom
Sub Type	Diverter Trim
Type	Shower Trim
Width	6.00 in.
Inventory Number	NEW1-685
MPN	1-685
