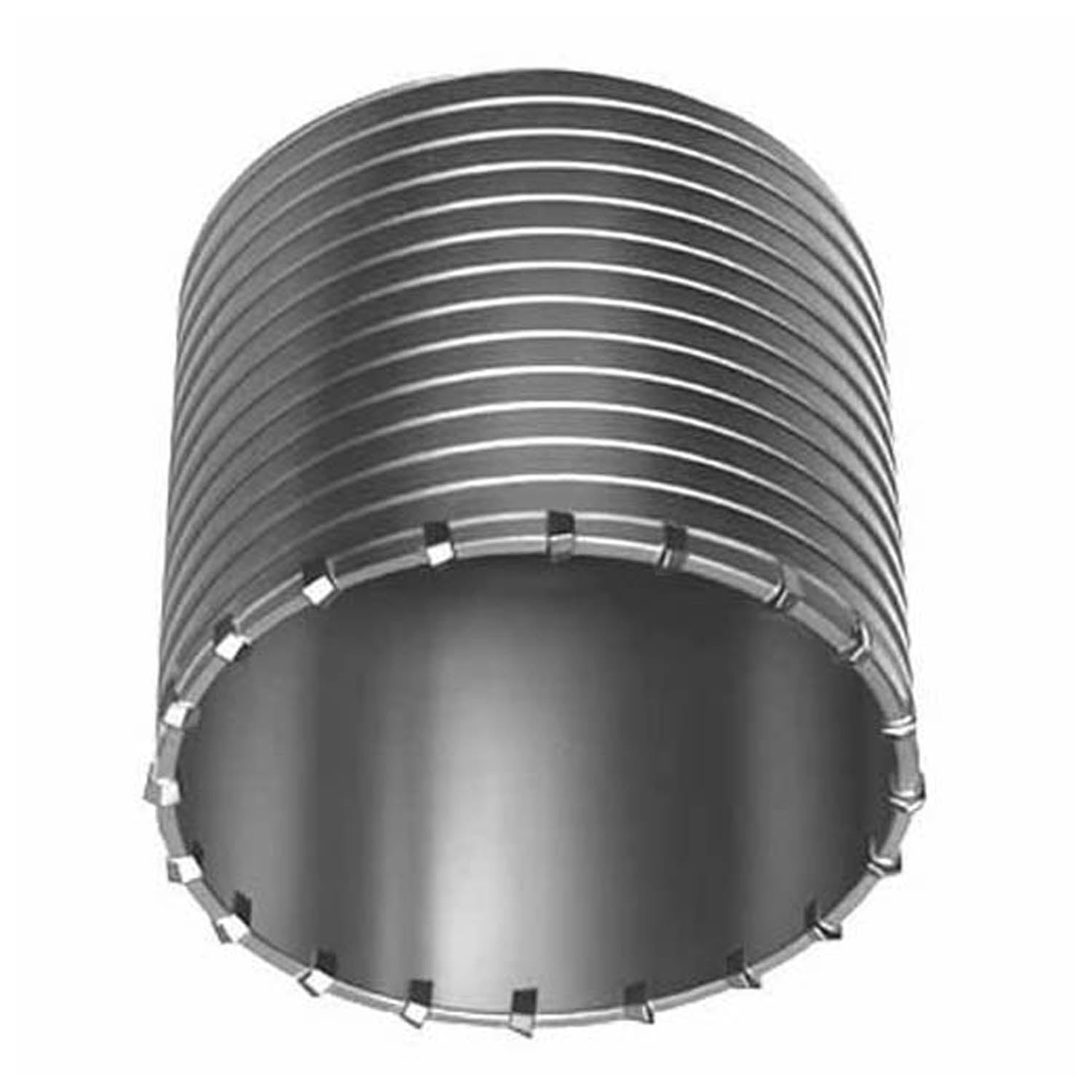

Milwaukee's SDS-Max and spline thick wall core bits are used for drilling large through holes into brick, block, concrete. Includes core bit, guide plate, and centering pin.

• Thick wall design
• 1-1/2 in. diameter
• Usable cutting depth 4-1/16 in.
• Use with 12 in. or 18 in. spline adapter shanks (48-03-3564, 48-03-3565) and 12 in. or 18 in. SDS-Max adapter shanks (48-03-3572, 48-03-3573)
• Use with 7-1/2 in. extension 48-95-6085
• Use with guide plate 48-20-5170 and centering pin 48-20-5199
• Includes core body with guide plate & centering pin

Weight	1.46 lb
Height	2.05 in.
Horse Power	1/3
Length	7.10 in.
Width	2.10 in.
Inventory Number	MIL48205125
MPN	48-20-5125
