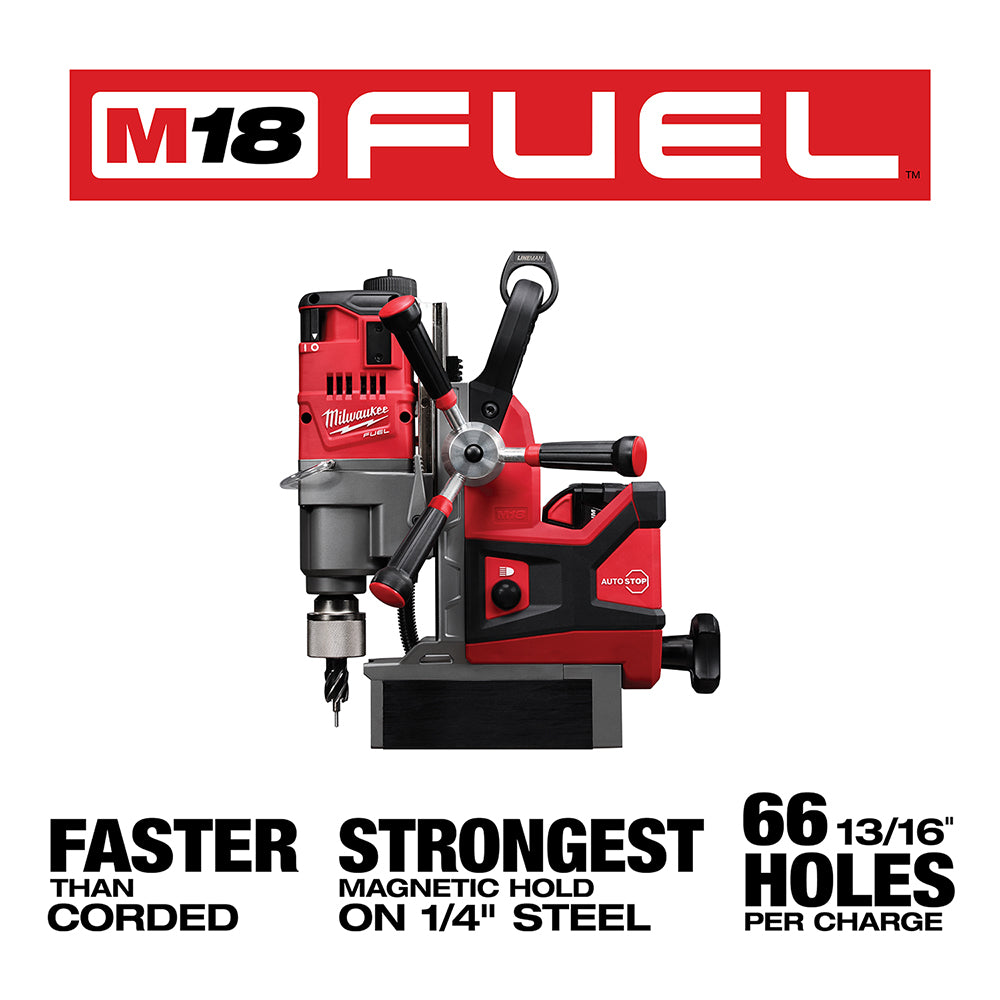

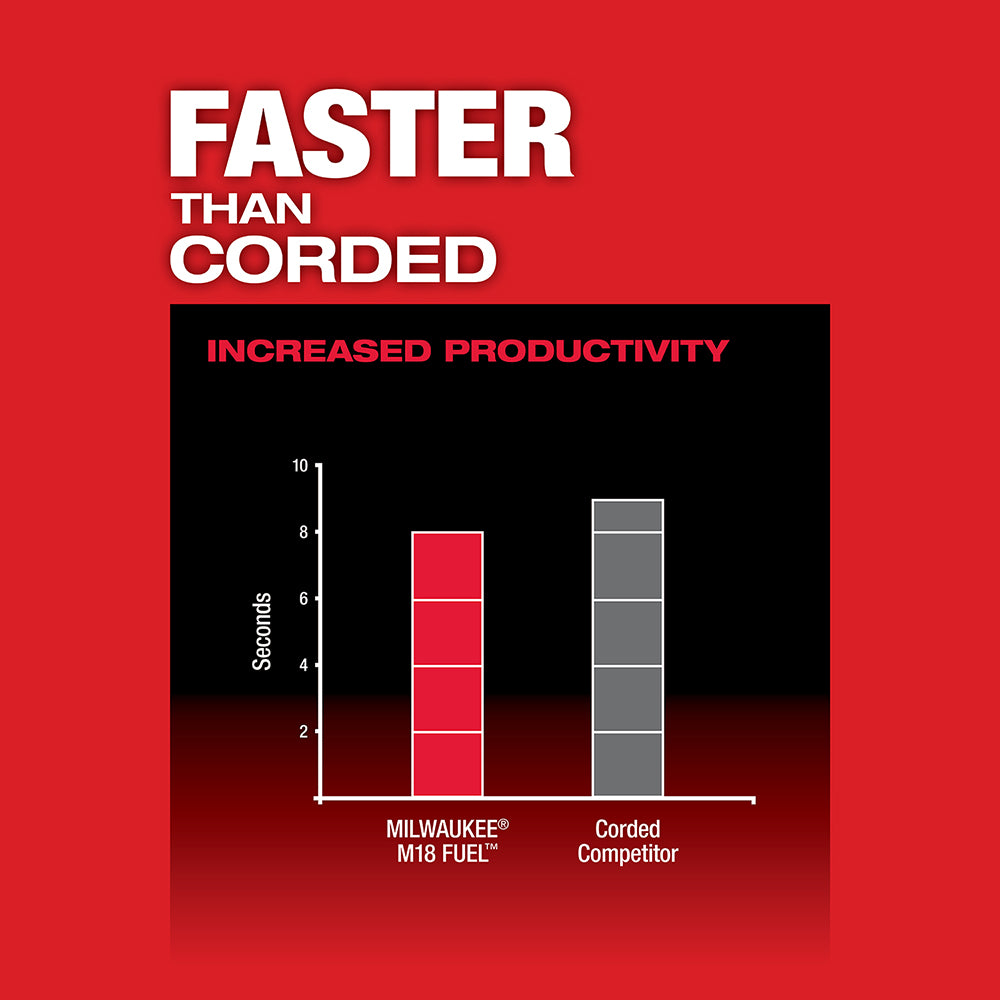

The M18 FUEL 1-1/2 in. magnetic drill drills faster than the number one corded competitor, delivers the strongest magnetic hold on 1/4 in. steel providing a safer drilling environment in this material, and drills over (66) 13/16 in. holes per charge. By utilizing permanent magnets, the magnetic base operates without electricity; ensuring that the magnet does not deactivate if the battery is drained. Equipped with AutoStop lift-off detection, power to the motor is automatically cut if excess rotational motion is detected while drilling. Powered by a MILWAUKEE POWERSTATE brushless motor, both drills are faster than their corded counterparts, and deliver the same 1-1/2 in. annular cutter capacity. REDLINK PLUS intelligence is the most advanced electronic system on the market, preventing damage to the tool and battery caused by overloading or overheating. The M18 REDLITHIUM HIGH OUTPUT XC8.0 battery pack provides 50% more power and runs 50% cooler vs REDLITHIUM XC batteries. It maintains full power and runs substantially cooler through heavy applications, allowing users to push their cordless tools harder and longer than ever before. The M18 REDLITHIUM HIGH OUTPUT XC8.0 battery is fully compatible with 200+ M18 tools.

• POWERSTATE Brushless Motor: Delivers maximum power and provides up to 2x longer motor life.
• REDLINK PLUS Intelligence: Provides optimized performance and overload protection using total system communication between tool, battery and charger.
• M18 REDLITHIUM HIGH OUTPUT XC8.0 Battery delivers over (66) 13/16" holes in 1/4" steel per charge
• Self- Powered Magnet Base Operates Independently of Power Source and Delivers up to 2,000 lbs. of Holding Force.
• 1-1/2" Annular Cutter Capacity 1/2" Twist Bit Capacity.
• 3 Speed Gear Box: 400/690 RPM.
• Stroke Length: 5-3/4"
• Motor Head Adjustment: 5-1/8"
• Delivers over 66 13/16" holes in 1/4" steel per battery

Weight	60.6 lb
Height	8.25 in.
Horse Power	1/3
Length	31.00 in.
Width	23.00 in.
Inventory Number	MIL278822HD
MPN	2788-22HD
