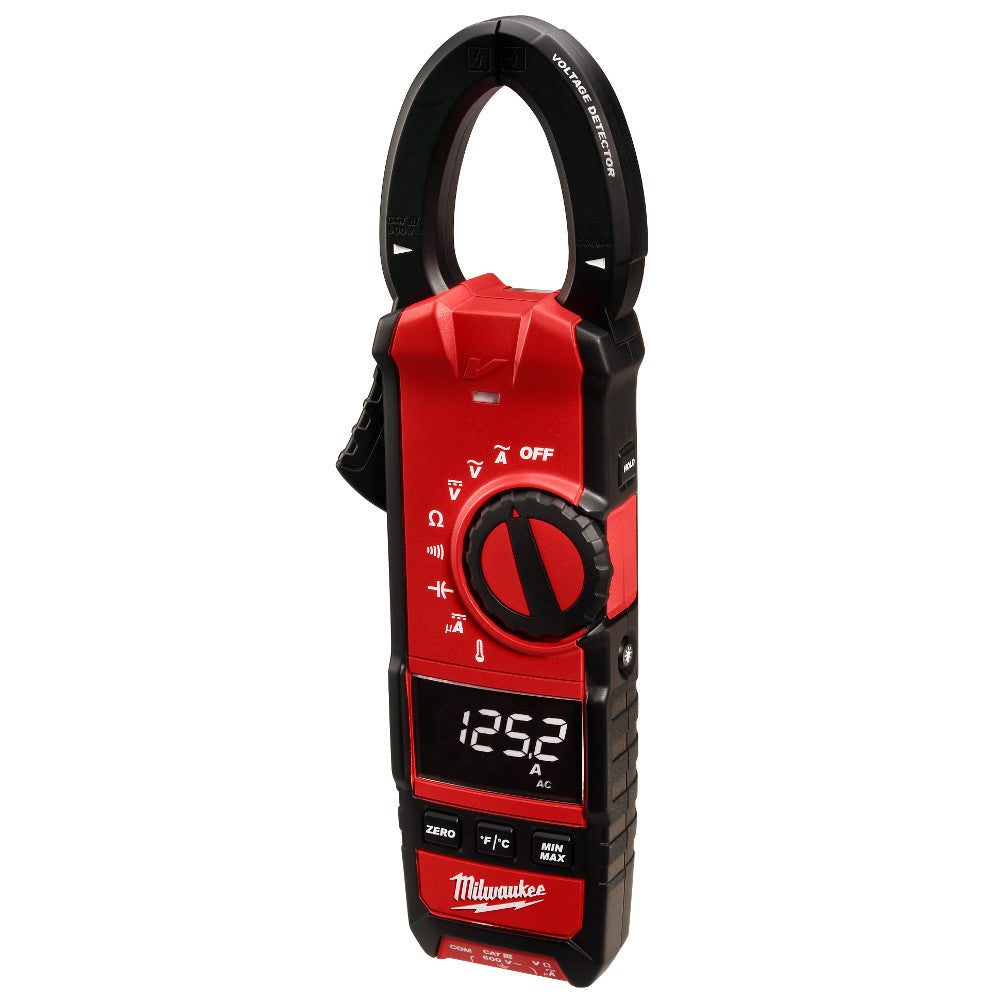

The Milwaukee clamp meter for HVAC/R is a heavy duty True-RMS electrical current tester for professional residential, commercial, and industrial applications. The perfect tool for the professional HVAC/R technician, the 2236-20 clamp meter provides a wide 1.3 in. jaw opening to easily handle large conductors, a thin jaw profile for access to tight spaces and a high contrast white-on-black display for clearer readings. In addition, the Milwaukee clamp meter for HVAC/R was designed with embedded non-contact voltage detection and an LED work light to increase end user productivity.

• Measures up to 600 A AC, large 1.30 in. jaw opening
• Thin jaw profile for easier wire measurement in panels or in bundles
• Wide voltage range to 600 AC/DC volts
• True-RMS for accurate measurement in all applications
• Built-in voltage detector and LED work light
• Thermocouple (dual banana) input for contact temperature measurement
• 600 uA DC for flame rectification
• High contrast, white on black display with backlight for easy reading
• Rugged over-molding increases durability and user grip

Weight	1.4 lb
Height	3.05 in.
Horse Power	1/3
Length	10.55 in.
Width	5.70 in.
Inventory Number	MIL223620NST
MPN	2236-20NST
