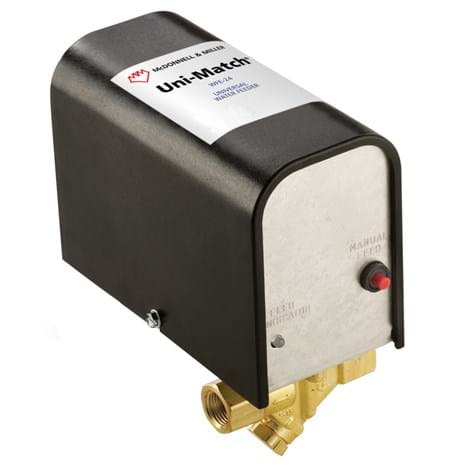

McDonnell & Miller Universal Water Feeders are ideal for use in residential or small commercial applications. Versatile and compact, they are easily installed to operate with either a probe- or float-type low water cut-off. The feeders are always ready to add water when given the signal from the LWCO - no need to manually add water. And they protect the boiler from a dry fire condition by maintaining a safe minimum water level in the boiler should a system leak occur. They monitor the water level, maintaining a safe minimum and allow the boiler water line to rise and fall naturally through its normal operating range.

Features

• Field-adjustable dwell-feed cycles
• Multi-color LED status indicator
• Manual feed button
• Hard-stop limit to minimize chances of flooding the boiler
• Compatible with all electronic & mechanical
• Low Water Cut-Offs
• Includes adapters for connection to �� copper tubing
• Removable strainer (replace after cleaning)
• Maximum water pressure 150 psi (10.5 kg/cm2)
• Maximum boiler pressure 15 psi (1 kg/cm2)
• Maximum water temperature 120�F (49�C)
• Maximum ambient temperature 100�F (38�C)
• Maximum power consumption (during feed cycle)
• 15 VA @ 24VAC
• 20 VA @ 120 VAC (50 or 60 Hz)

Want to learn more about this water feeder? Read our blog about boiler repair parts here.

Weight	2.8 lb
Height	6.00 in.
Horse Power	1/3
Length	6.00 in.
Voltage	24V
Width	4.00 in.
Inventory Number	MCDMWFE24V
MPN	169550
