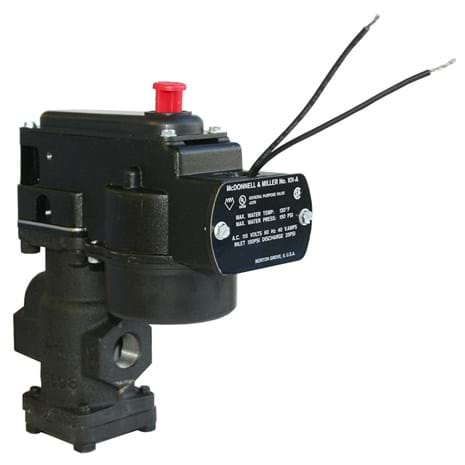

Series 101-A
Electric Water Feeders

• For low pressure steam boilers with cold water feed
• Eliminates necessity to manually add water to the boiler
• Can be used with mechanical or electronic low water cut-off controls
• Quick-change replaceable cartridge valve and strainer
• Manual feed button
• Model 101-A features a 120 VAC solenoid
• Model 101-A-24 features a 24 VAC solenoid and a separate 50 VA transformer
• Maximum water supply pressure 150 psi (10.5 kg/cm sq.)
• Maximum boiler pressure 25 psi (1.8 kg/cm sq.)
• Maximum inlet water temperature 120 degrees F (49 degrees C)
• Maximum power consumption

- 40 VA at 24 VAC
- 40 VA at 120 VAC

Weight	1.0 lb
Height	in.
Horse Power	1/3
Length	in.
Voltage	24V
Width	in.
Inventory Number	MCDM101A24V
MPN	169500
