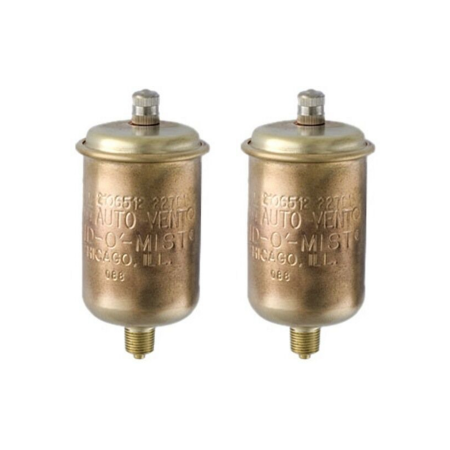

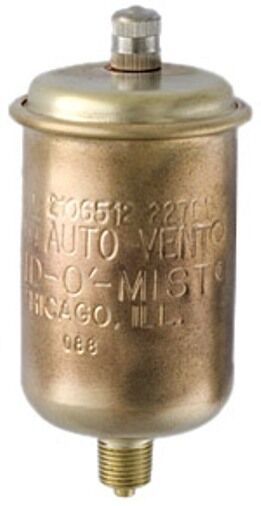

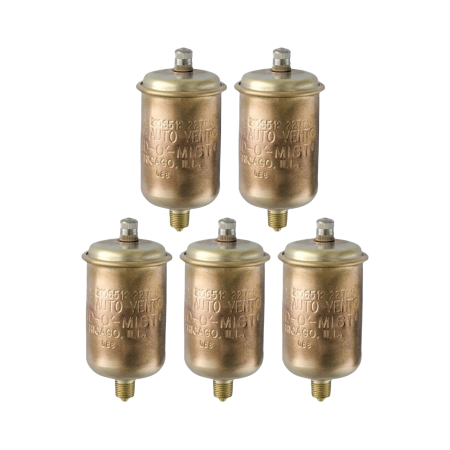

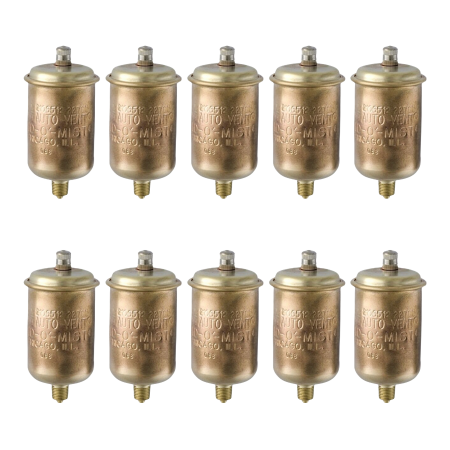

Maid-O'-Mist No. 67 Series Auto-Vent Automatic Air Eliminating Valve Autovent

The No. 67 Auto-Vent is a float-operated vent for use on convector radiators, baseboard radiation and radiant panels. These are designed to be used in space that is limited and can be installed in trouble spots previously neglected or improperly vented. No air chamber is required. The No. 67 Auto-Vent is designed for systems with pressures up to 50 lbs.

For All Hot Water and Solar Heating Systems

Correct problems and avoid trouble by installing these float-operated Auto-Vents. They vent air from mains, solar panels, pipe lines, boilers, unit heaters, chillers, convectors, radiant panels, coils, baseboard and free-standing radiation.

6 SERIES AUTO-VENTS

The No. 66, 67, 68 Auto-Vents are float-operated vents for use on convector radiators, baseboard radiation and radiant panels. These are designed to be used in space that is limited and can be installed in trouble spots previously neglected or improperly vented. No air chamber is required. The No. 66, 67, 68 Auto-Vents are designed for systems with pressures up to 50 lbs.

No. 66 and 67 Auto-Vents can be used with the No. 9AS Shortstop Automatic Shut-off.

For safe waste use the No. 7A Connector

No. 67 Auto-Vent Features

• Vertical mounting
• 1/8" I.P. male connection
• Up to 50 lbs. pressure
• 3-3/4" x 9/16"
• Bright brass finish

Weight	0.2 lb
Height	4.00 in.
Length	2.00 in.
Width	2.00 in.
Inventory Number	MAI67
MPN	No. 67
