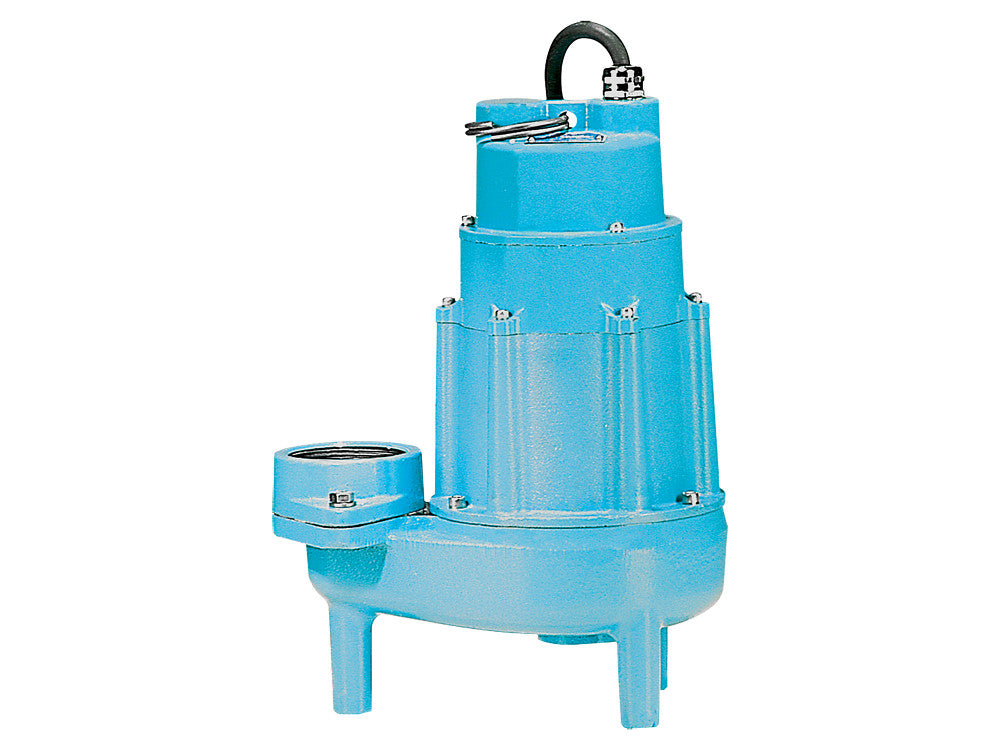

There's no denying the power packed into the 20S Series sewage pump. Equipped with a robust 2 horsepower motor, upper and lower ball bearings, durable brass impeller, and oil-filled motor housing for lifetime lubrication and rapid heat dissipation, the 20S is built for continuous duty operation in effluent and sewage water transfer applications. Vigorous enough to handle 205 GPM at 10', the 20S Series holds the elite position when it comes to durability and resilience.

• Cast iron pump housing with protective epoxy coating for corrosion and rust resistance.
• Handles liquids and solid waste materials up to 2" diameter.
• 3" Vertical Discharge
• Oil-filled motor housing for life time lubrication and rapid head dissipation.
• Upper and lower ball bearings.
• Stainless steel screw, bolts, handle and seal assembly.
• Mechanical seals (stainless steel spring, nitrile parts, carbon and ceramic faces)
• Thermal overload protection of single phase units
• Brass impeller
• Capacitor start on single phase units
• Continuous Duty Rated - This means the pump ratings are within the motor manufacturer's recommended working limits when the pump is operated continuously under conditions shown in the manufacturer's published ratings.
• 3 Phase Pump Must Have a 3 Phase Control Panel for Automatic or Manual Operation

Weight	95.0 lb
Collection	20S Series
Color	Solid Colors
Finish	Cast Iron
Height	18.40 in.
Horse Power	1/3
Length	12.93 in.
Material	Cast Iron
Room	Utility
Voltage	230
Width	8.42 in.
Inventory Number	LIT520125
MPN	520125
