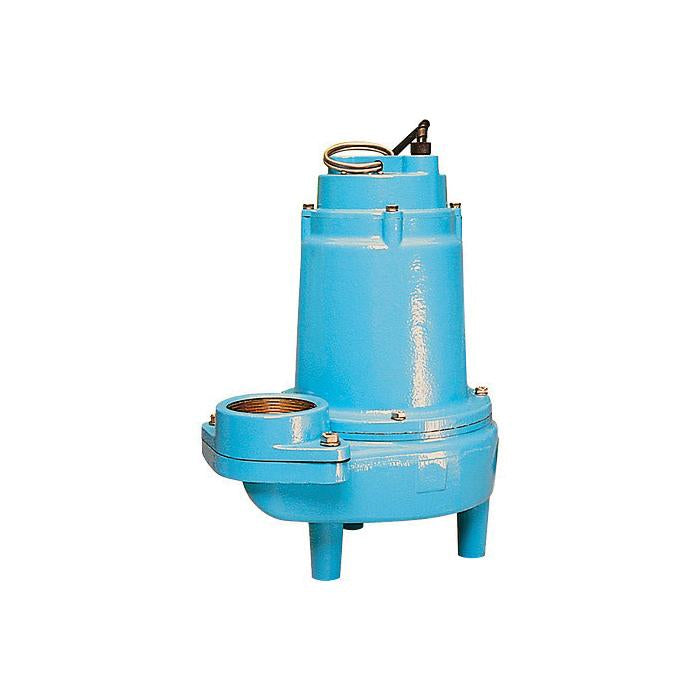

Engineered for long-term dependability, the 16S Series sewage pump has a powerful 1 horsepower motor consisting of an oil-filled motor housing for lifetime mechanical seal and bearing lubrication and efficient heat dissipation. It includes a mechanical-type seal (stainless steel spring, nitrile parts, carbon, and ceramic faces) with secondary exclusion seal for added strength and durability. The dynamically balanced two-vane non-clog impeller is designed with pump-out vanes to keep solids away from the seal for less seal and bearing wear.

• 1 hp Permanent Split Capacitor (PSC) motor
• Designed for continuous duty
• 3" FNPT (76.2 mm) discharge
• Handles solids up to 2" (51 mm) diameter
• 140 degrees F (60 degrees C) liquid temperature rating
• Available in 1-phase or 3-phase pump design

Weight	87.0 lb
Color	Solid Colors
Height	17.18 in.
Horse Power	1/3
Length	14.07 in.
Material	Cast Iron
Room	Utility
Width	9.89 in.
Inventory Number	LIT514625
MPN	514625
