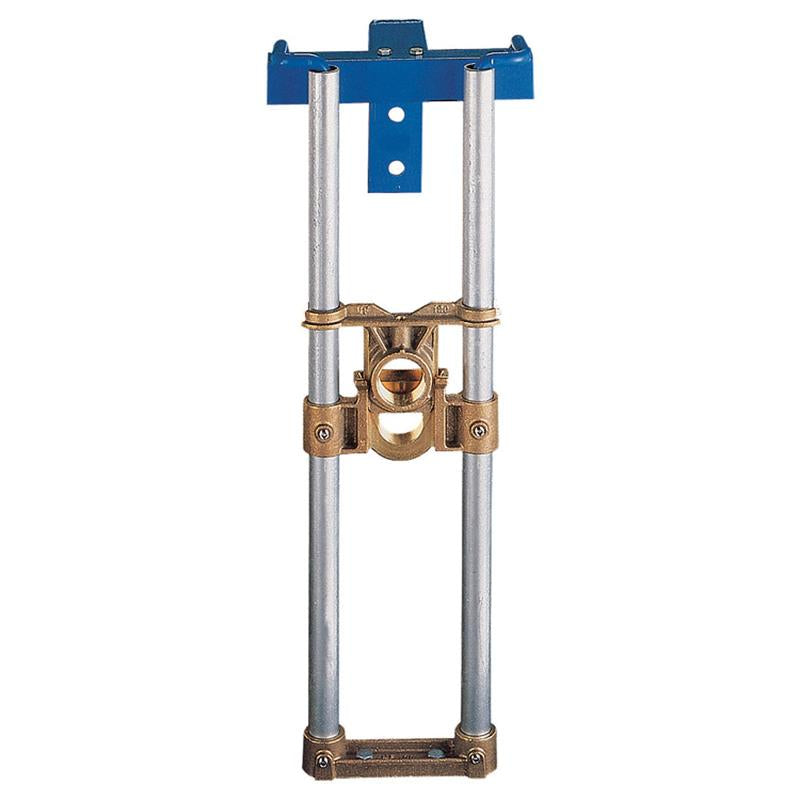

Complete systems used for installations with a total depth of over 5' when the discharge pipe is 18" or more below grade, particularly when the liquid level is above the discharge level. 3/4" IPS (Iron Pipe Size) pipe rails should be used on the 2" system and 1 1/4 IPS pipe rail on the 3" system. Brass foot guide supplied for use with steel pipe. Guide rail brackets and steel stand-off brackets included with each system to support the upper end of the guide rail pipes. One intermediate guide rail bracket is required for every 10' of rail. (Guide rail pipes, lifting chain and pull rod not included.) All guide rail products can be used with any of the Little Giant Pump Company effluent and sewage pumps having 2" or 3" discharge.

• 3/4" IPS pipe rails should be used on the 1-1/4" and 2" system and 1-1/4" IPS pipe rail on the 3" system
• Brass foot guide supplied for use with steel pipe
• Guide rail brackets and steel stand-off brackets included with each system to support the upper end of the guide rail pipes
• One intermediate guide rail bracket is required for every 10' of rail

Weight	24.5 lb
Height	in.
Horse Power	1/3
Length	in.
Material	Cast Iron
Room	Utility
Width	in.
Inventory Number	LIT513300
MPN	513300
