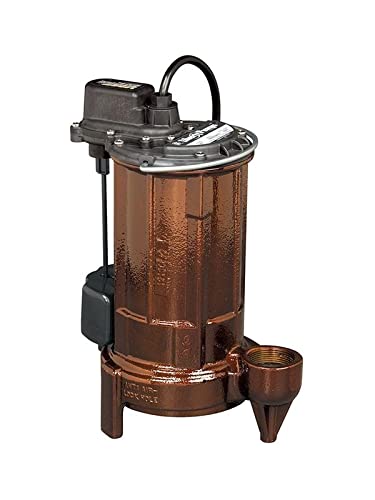

Liberty Pumps Model 293HV Cast Iron Automatic Effluent Sump Pump, 3/4 HP, 230V, 10ft Cord
Liberty Pumps Model 293HV Cast Iron Automatic Effluent Sump Pump, 3/4 HP, 230V, 10ft Cord
Regular price
$464.25
Sale price
$464.25
Regular price
$0.00
MSRP: $619.00
Special Order.Expect 4-6 weeks for delivery.
Couldn't load pickup availability
The Liberty 290 Series provides a cost effective mid-range pump for on-site waste water systesms, liqquid waste transfer, and commercial heavy-duty Sump Pump applications that require higher head or more flow. Designed around Liberty's unique uni-body casting, the 290 series will provide years of reliable performance.
- Heavy cast iron construction
- Unique one-piece cast body eliminates motor housing seal ring
- Durable epoxy powder coat finish
- Vortex Impeller permits passage of solids without clogging
- Permanently sealed and lubricated bearings
- Automatic Operation
- 3/4 HP
- Voltage: 230V

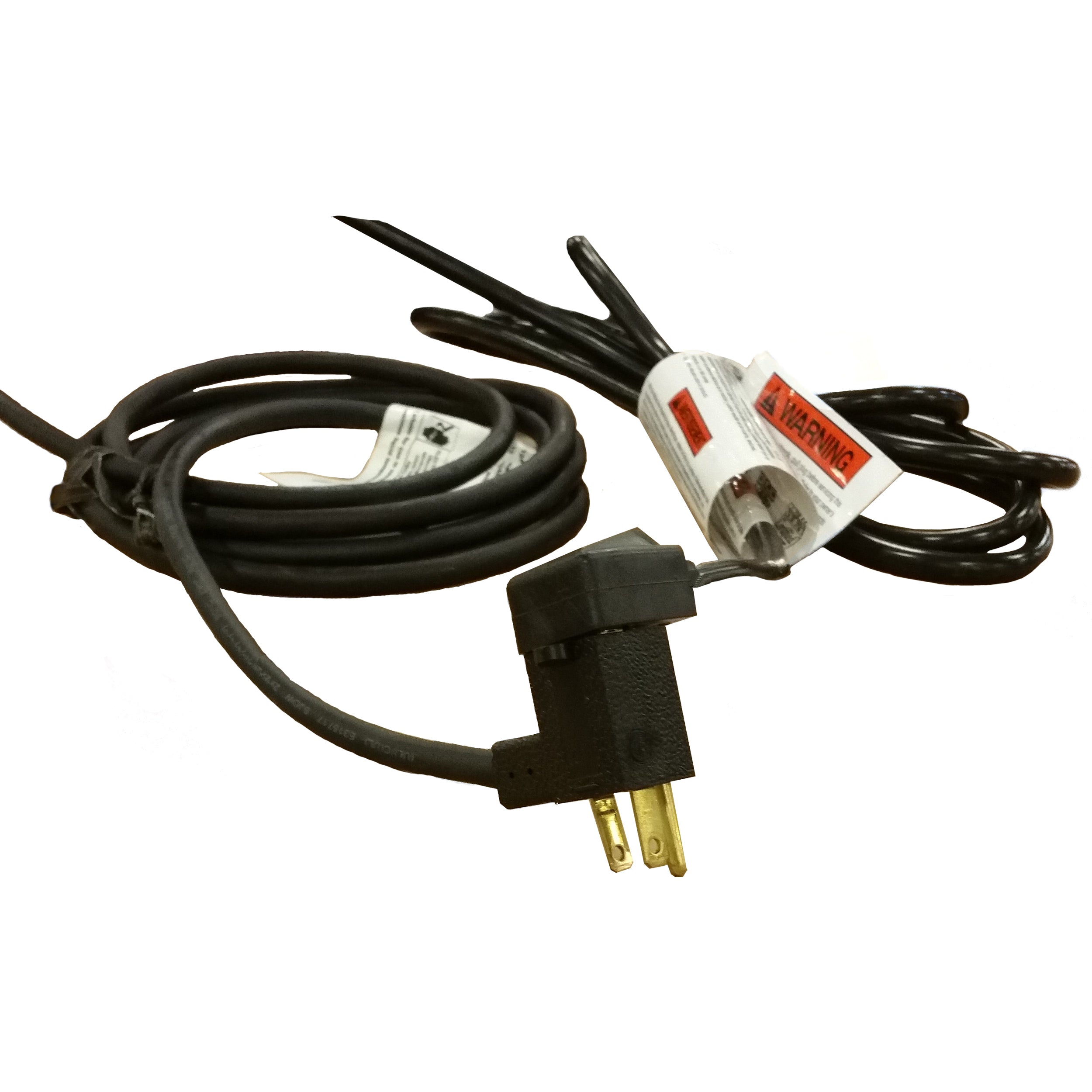

- Quick-connect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor
- Full Load Amps: 10.4
- Discharge NPT: 1-1/2"
- Float Type: Wide Angle switch with series (piggy back) plug - allows manual operation
- Max Operating Temp: 221F/105C
- Max Head: 48'
- 3450 RPMs
- Handles 3/4" Solids
- 82+ GPM
- Series Overview
- Installation Manual
- Engineering Specifications
| Weight | 31.0 lb |
|---|---|
| Height | 14.00 in. |
| Horse Power | 1/3 |
| Length | 11.00 in. |
| Room | Utility |
| Type | Primary Sump Pumps |
| Voltage | 230 |
| Width | 7.00 in. |
| Inventory Number | LIB293HV |
| MPN | 293HV |
