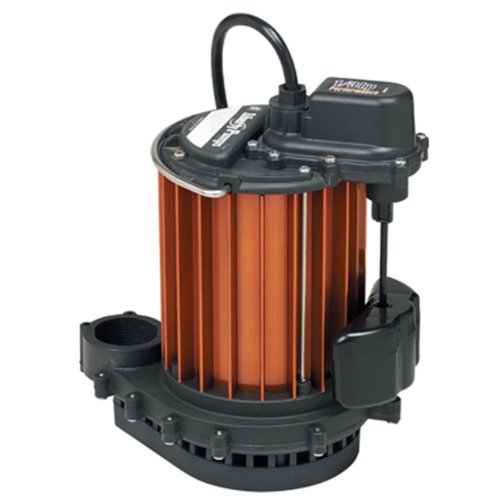

Cool running and efficient, the 230-Series features a deep-finned powder coated aluminum motor housing, polypropylene base and vortex style Impeller . Topped off with a quick-disconnect power cord, the 230-Series offers a superior value in a 1/3 hp pump.

• Deep finned powder coated aluminum motor housing provides over 200% more cooling capacity than cast iron housings!
• Energy Saving Model - Efficient motor design reduces electrical usage by up to 40%!
• Vortex Impeller permits passage of solids without clogging
• Polypropylene and powder coated aluminum construction
• Stainless-steel rotor shaft
• Non-corrosive stainless-steel fasteners
• Oil-filled, hermetically sealed motors with Thermal Overload Protection
• Quick-connect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor
• 1/3 HP
• Voltage: 115V
• Full Load Amps: 5.2
• Discharge NPT: 1-1/2"
• Manually Operated
• Max Operating Temp: 140F/60C
• Max Head: 22'
• 3450 RPMs
• Handles 3/8" Solids
• Lightweight, high performance submersible pump
• Power coated for corrosion resistance
• Anti-airlock hole allows trapped air to escape and the pump to prime and start pumping

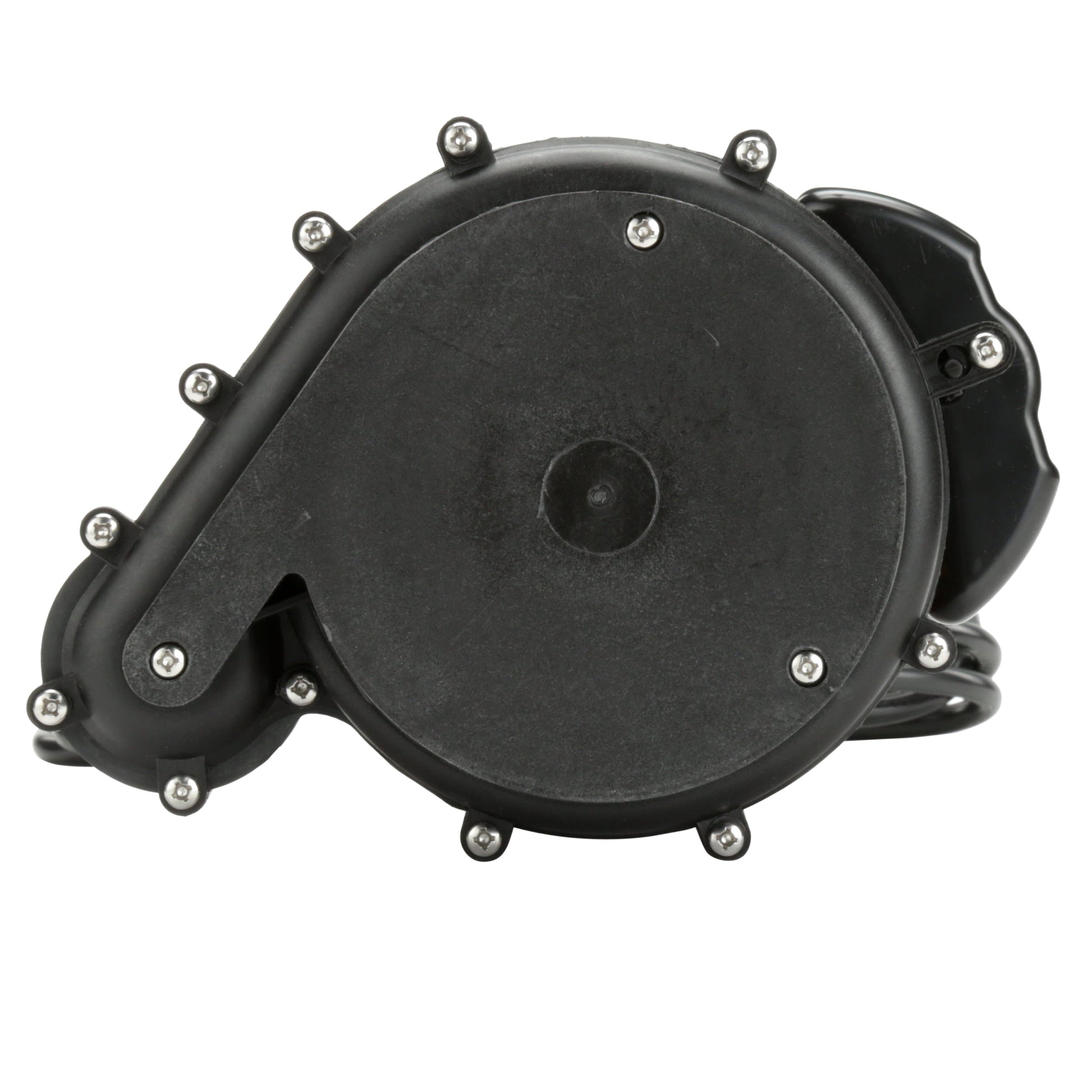

• Removable base allows suction down to 1/8"
• 44 GMP
