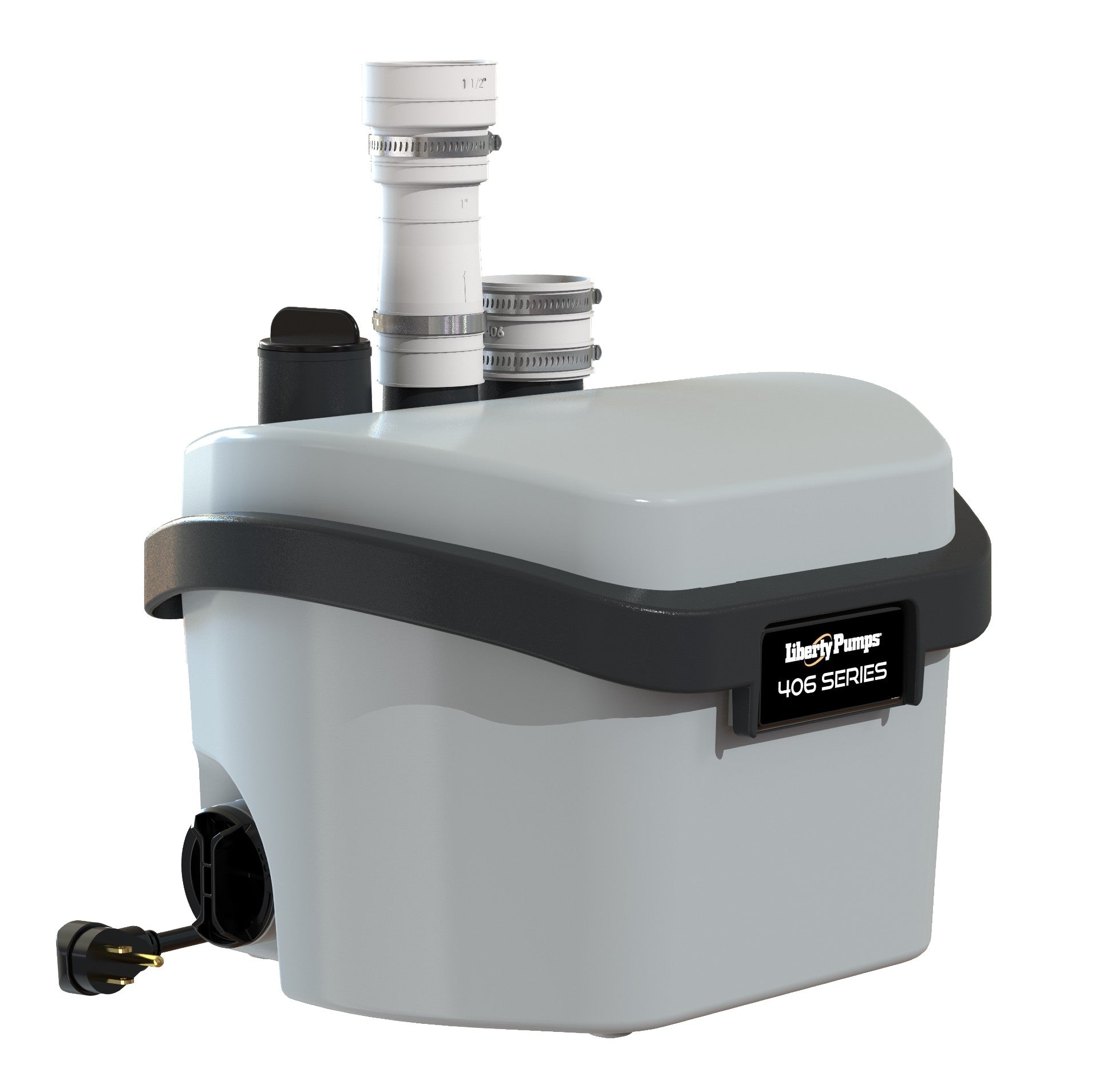

White compact drain pump with black band, vertical discharge outlet, hose connections, and power cord.

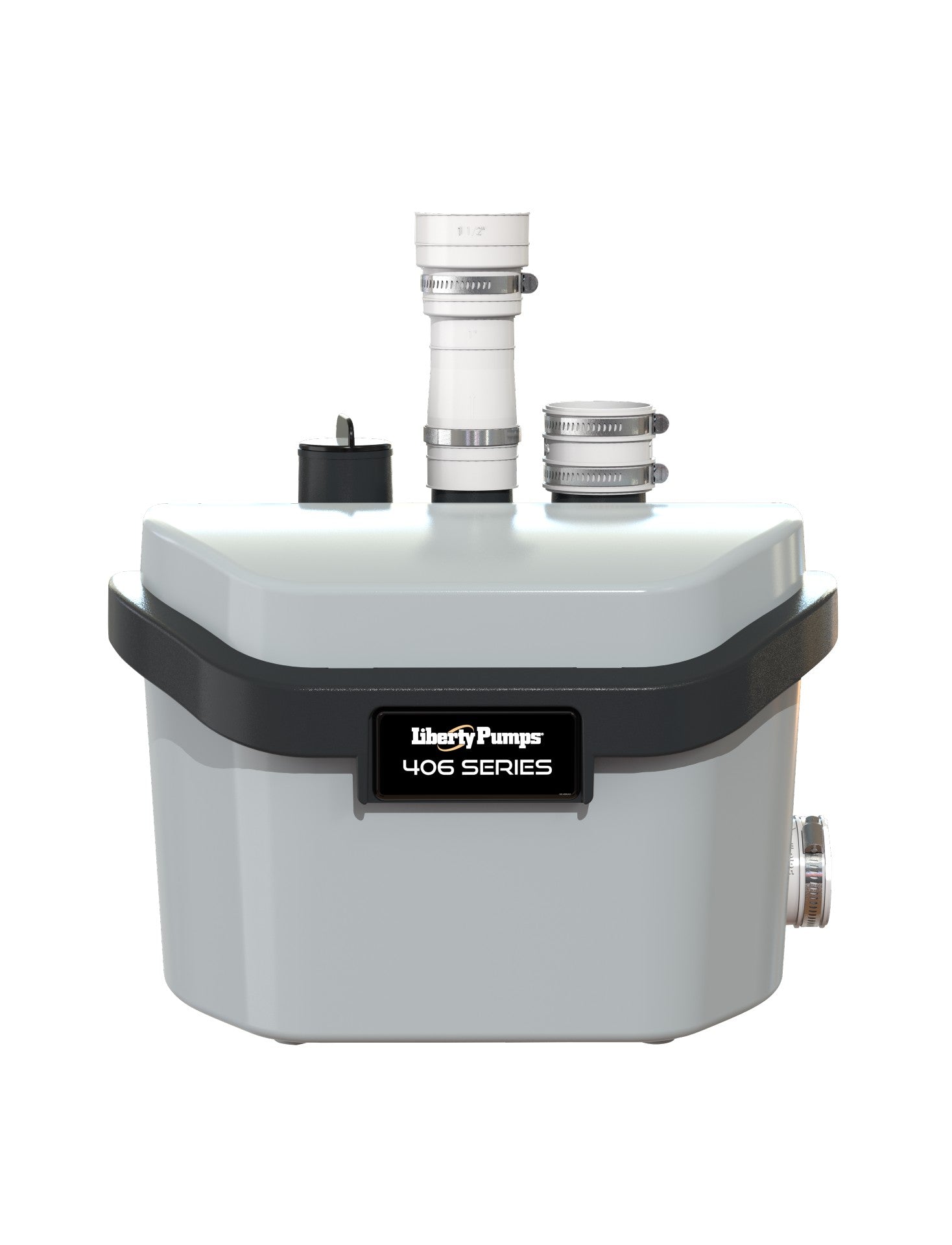

Liberty Pumps 406 Series compact drain pump with white basin, white discharge tubing, metal hose clamps, and black float swit

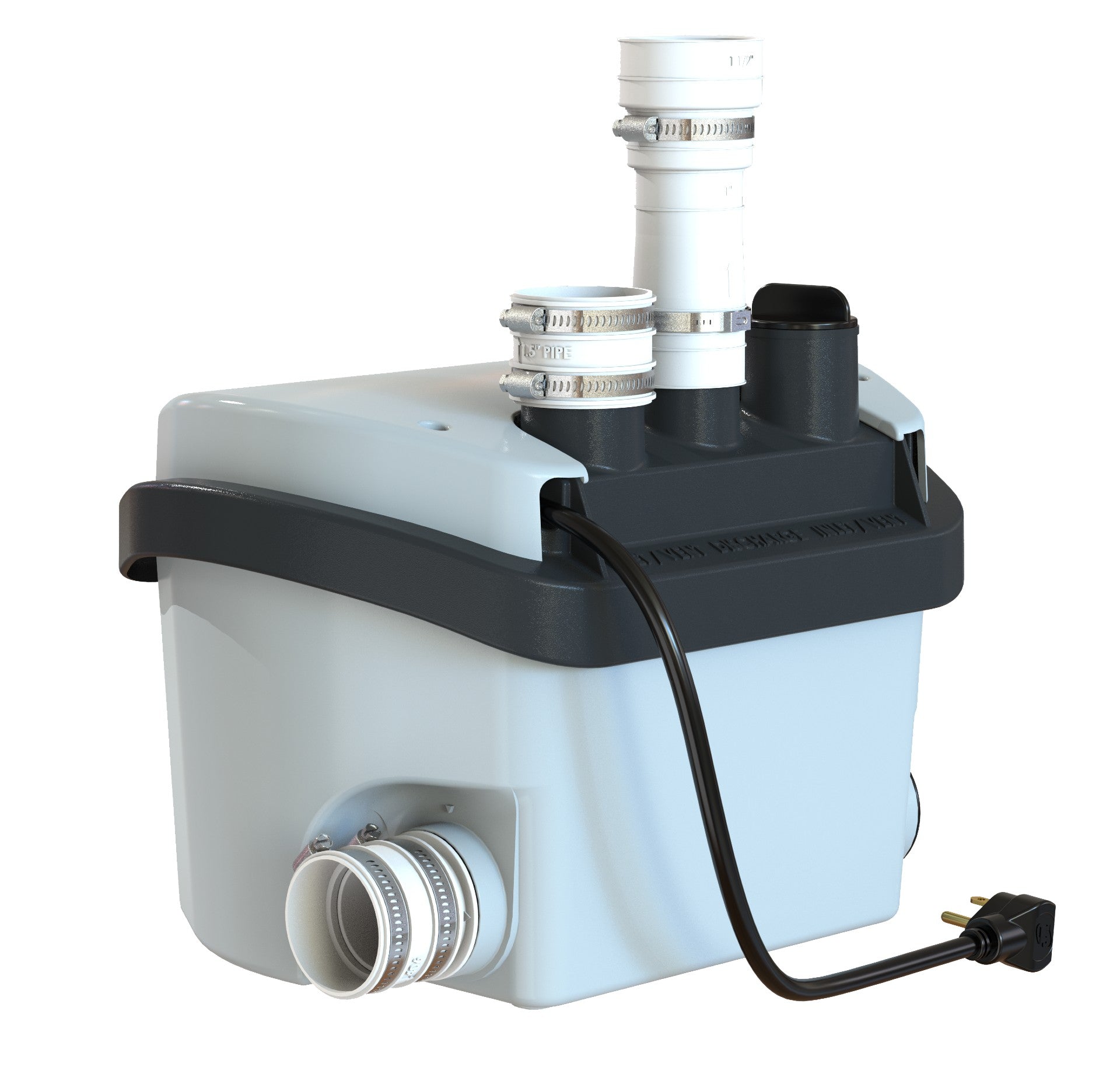

White compact drain pump with black top housing, vertical white discharge pipe with hose clamps, and power cord attached.

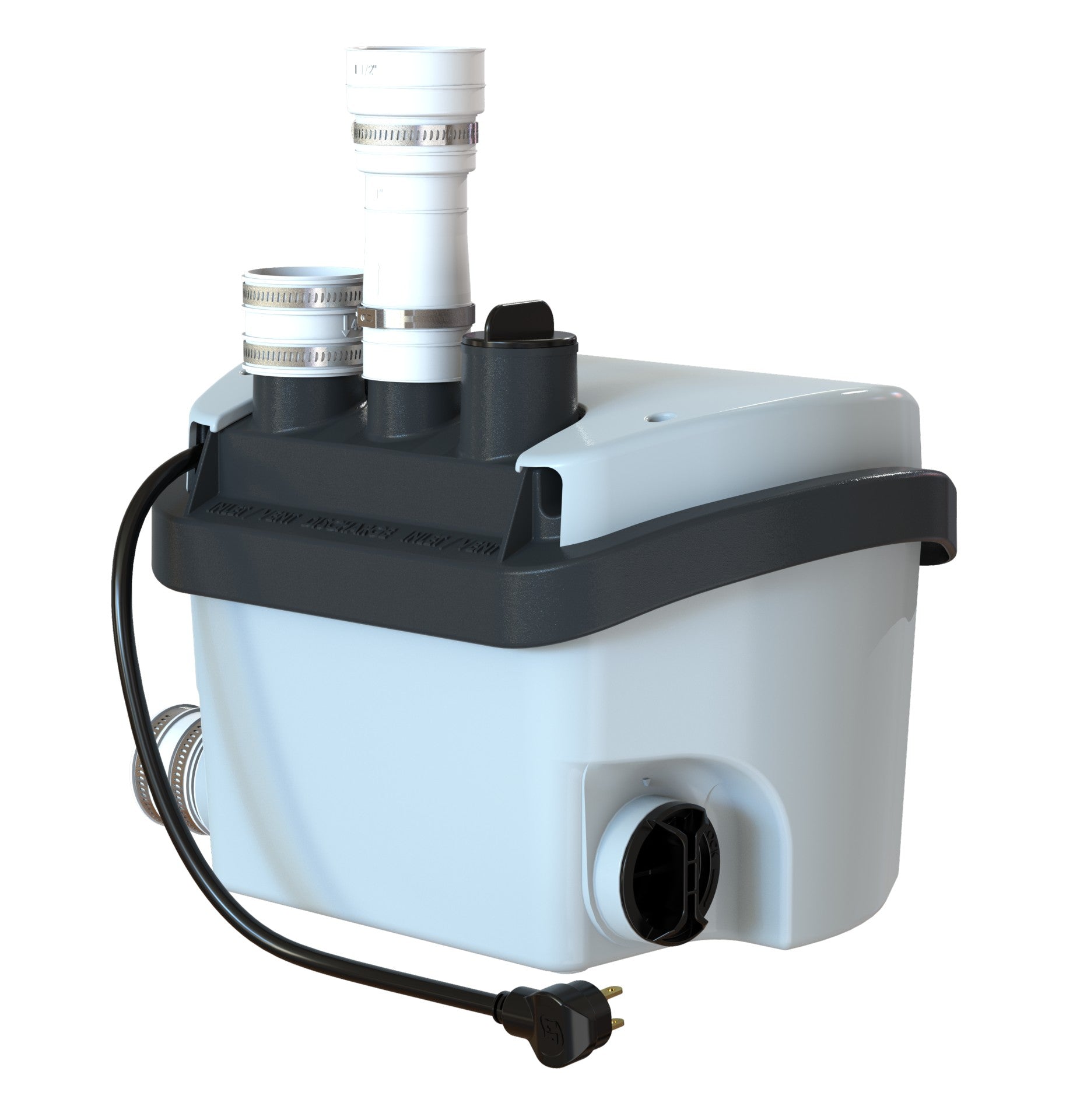

White and black compact drain pump with outlet pipe, inlet connections, and attached power cord.

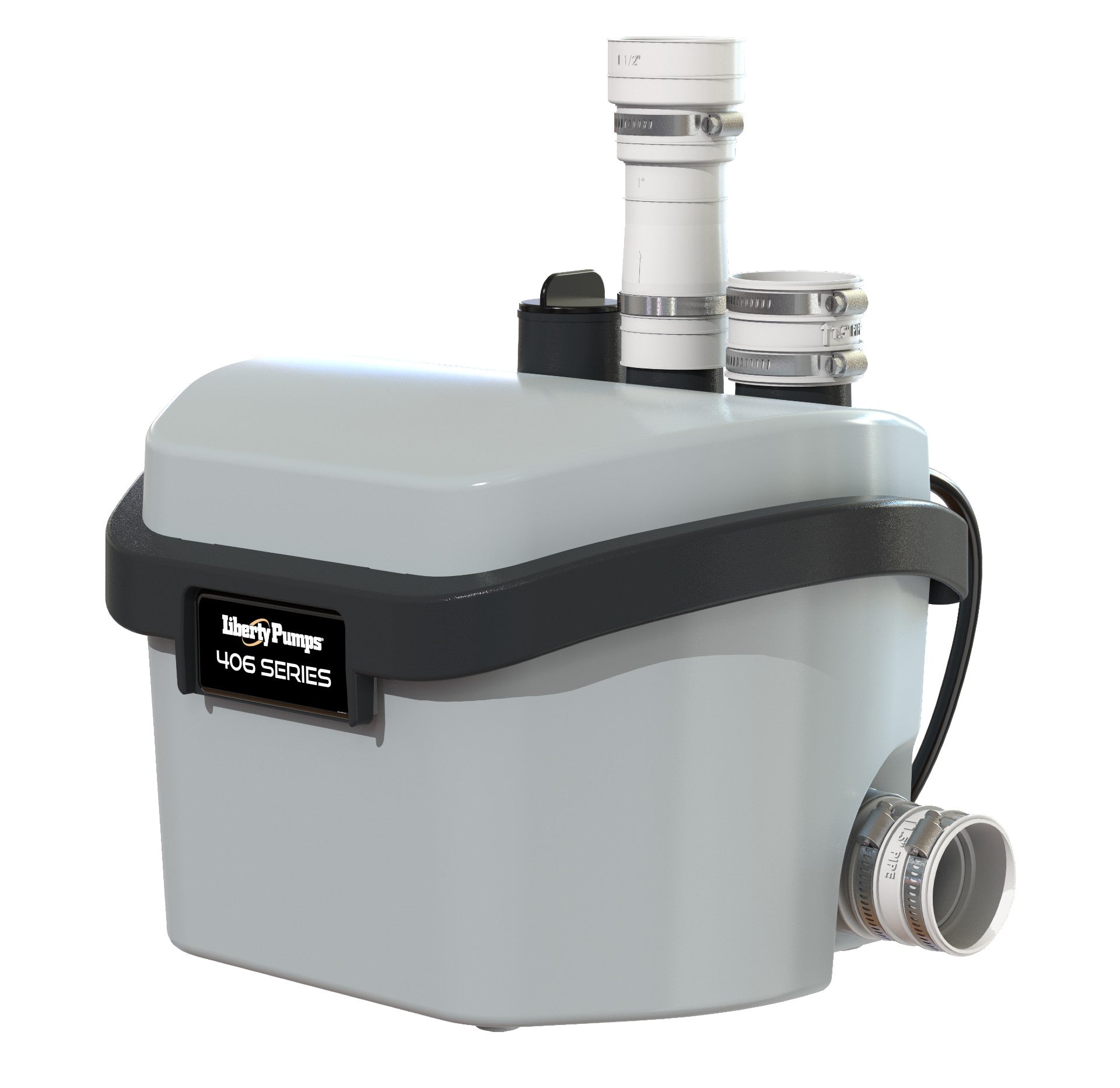

Compact white and black drain pump with vertical discharge pipe, hose connection, and black carry handle.
White compact drain pump with black band, vertical discharge outlet, hose connections, and power cord.
Liberty Pumps 406 Series compact drain pump with white basin, white discharge tubing, metal hose clamps, and black float swit
White compact drain pump with black top housing, vertical white discharge pipe with hose clamps, and power cord attached.
White and black compact drain pump with outlet pipe, inlet connections, and attached power cord.
Compact white and black drain pump with vertical discharge pipe, hose connection, and black carry handle.

Liberty Pumps 1/6 HP Compact Drain Pump

Liberty Pumps 1/6 HP Compact Drain Pump

SKU #: LIB406

MPN #: 406

UPC #: 671812163001

$339.00
$339.00 $0.00
MSRP: $452.00
  • Ships Free

Hurry up, only 4 items left in stock.

Project Pricing

Get Accurate Project Pricing for Your Plumbing Needs

Project pricing at Plumbing-Deals is tailored to meet your specific project. The size of a plumbing job that qualifies as a project can vary, generally its larger than a single bathroom or kitchen remodel. By submitting the form or calling, you're taking the first step towards receiving a customized quote that considers your project's scope, timeline, and budget, ensuring a seamless and cost-effective solution for your plumbing parts and supplies.

Ready to get started? Call us at 888-682-5956, and let's make your plumbing project a success!
1/6 hp, Compact drain pump, 115V, 60hz, fully assembled
White compact drain pump with black band, vertical discharge outlet, hose connections, and power cord.

Liberty Pumps 1/6 HP Compact Drain Pump

$339.00
$339.00 $0.00

Free Shipping on Everything

In-Stock Items Ship Next Day

Our Experts are Ready to Help

Only Top-Quality Brands
  • 1/6 hp
  • 1", 1.25", and 1.5" Discharge
  • 1/8" Solids Handling

Features

  • Factory pre-assembled, ready to install
  • Quiet automatic operation
  • Short profile design for compact areas ? only 10" tall (base to top inlet flange)
  • Float switch and pump serviceability via access cover
  • Wet-end serviceability via removable pump ?cartridge? ? simple, 1/4 turn removal
  • Rubber gasket for a superior gas-tight seal
  • Floor-level side inlets, with integral Check Valve and couplings included for convenient plumbing
  • Stepped discharge adapter ? 1", 1.25", 1.5" with integral Check Valve

Applications

  • Bar sinks
  • Laundry trays
  • Dehumidifiers
  • Utility sinks
  • Gray wastewater drainage
  • Showers

Maximum Fluid Temperature

  • 104?F (40?C) continuous duty
  • 140?F (60?C) intermittent duty (10 seconds on/5 seconds off)

Motor Specifications

  • 1/6 hp
  • Air-cooled, Thermally Protected

Dimensional Data

  • Weight: 13.5 lbs
  • Major Height: 14.1"
  • Major Width: 13.2"

Included Connection Kit

  • 1 Stepped discharge adapter ? 1", 1.25", 1.5", with integral Check Valve
  • 1 Side inlet coupling (1.5") with integral Check Valve
  • 1 Top vent coupling (1.5")
  • 1 Top inlet coupling (1.5")
  • 2 Pre-installed side inlet plugs
  • 1 Pre-installed top inlet plug
  • 7 Stainless-steel clamps

Want to learn more about this drain pump? Read about it in our article on laundry pumps at our Resource Center.
