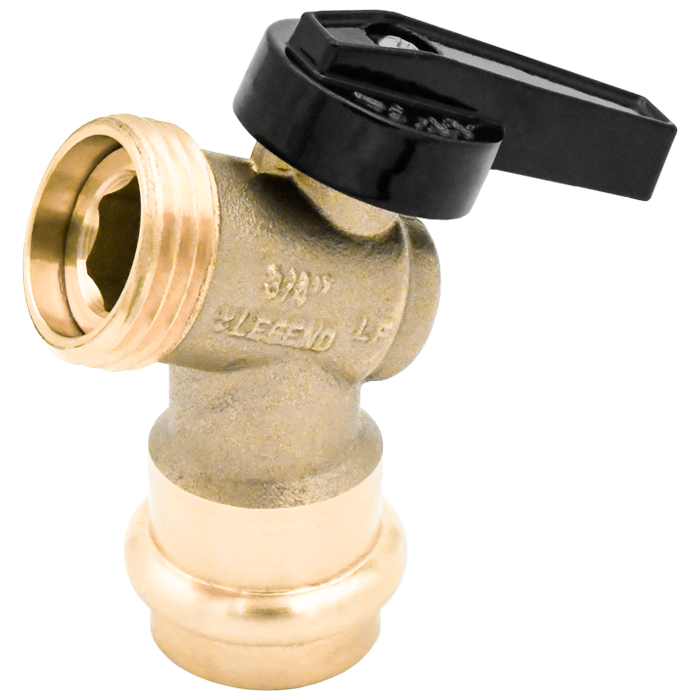

The Legend Valve 107-544PNL is a 3/4-inch R-670PNL press boiler drain valve featuring a quarter-turn operation. It has a press inlet and a male garden hose thread outlet. The valve is lead-free and constructed from forged brass, suitable for water applications up to 200 psi.

• Durable forged brass construction
• The positive shut-off ball and seat design is a more durable alternative to traditional stop-type valve designs
• Maintenance-free dual O-ring stem seal eliminates the need for packing nut tightening
• Smooth 1/4-turn operation

Weight	0.5 lb
Connection Size	3/4 in.
Height	0.70 in.
Length	2.30 in.
Material	Brass
Type	Boiler Drains
Width	2.70 in.
Inventory Number	LEG107544PNL
MPN	107-544PNL

• Specification Sheet
