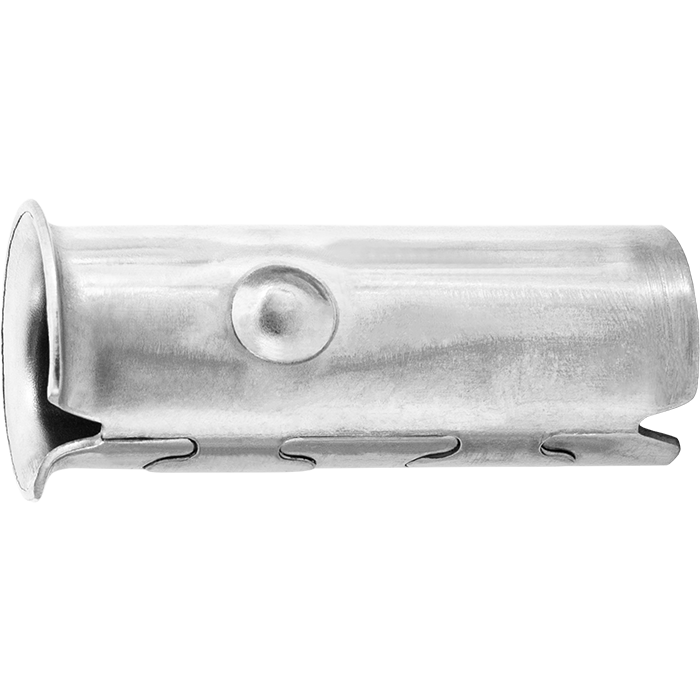

The Legend Valve 313-404 is a 3/4-inch CTS stainless steel insert stiffener designed for potable water applications involving CTS polyethylene tubing. Made from 304 stainless steel, it includes an interlocking tab design to resist crushing, an extended length for consistent gasket sealing, and tapered, fluted ends to facilitate insertion.

• Interlocking tab design resists crushing
• Extended length permits an even sealing surface for the fittings gasket
• Tapered and fluted ends minimize insertion resistance and movement
• Designed for use in potable water installations
• Designed for insertion into the inside diameter of CTS polyethylene plastic tubing
• Recommended on all pack joint and ring compression water service fitting installations onto polyethylene tubing or pipe
• Prevents the collapse of the tubing or pipe end

Weight	0.5 lb
Color	Stainless Steel
Finish	Stainless Steel
Height	0.65 in.
Length	2.40 in.
Sub Type	Merit Brass Stainless Steel Pipe Fittings
Type	Stainless Steel Pipe Fittings
Width	0.75 in.
Inventory Number	LEG313404
MPN	313-404

• Specification Sheet
