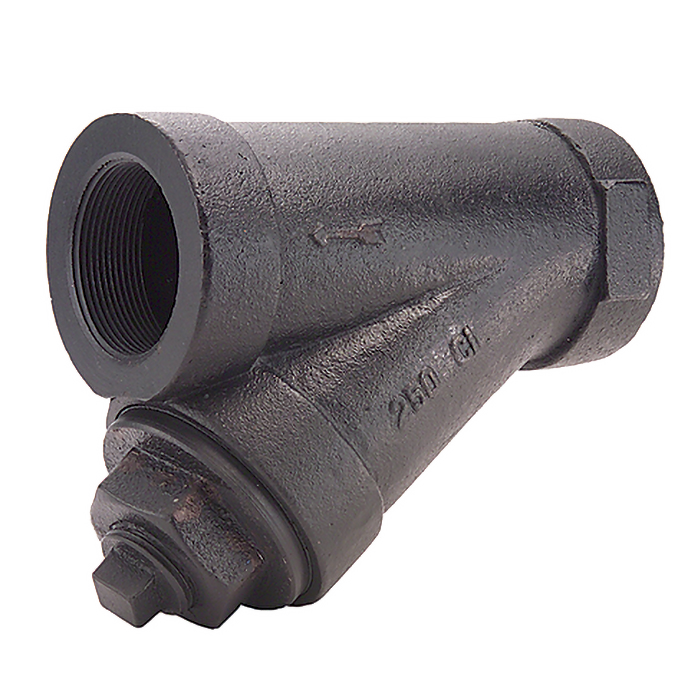

The Legend Valve 105-524 is a 3/4-inch T-17 cast iron Y-strainer designed for efficient filtration in plumbing systems. It features a 20 mesh 304 stainless steel screen and a closure plug, with a pressure rating of 500 psi WOG and 250 psi WSP.

• High-strength cast iron construction resists distortion from pipeline stresses
• Designed to protect downstream components, by trapping and holding debris under pressure
• Uni-directional flow, can be installed horizontally or vertically, where the screen cap must be positioned downward and in the vertical position, the media must flow downward
• Equipped with a 304 stainless steel 20 mesh screen cylindrical
• All sizes are furnished with a square-head closure plug that is pre-installed and ready for service
• Gasketed strainer cap is removable, for easy servicing of the screen or strainer
• ASTM A-126 class B cast iron cap

Weight	1.07 lb
Connection Size	3/4 in.
Finish	Cast Iron
Height	3.25 in.
Length	7.80 in.
Type	Wye Strainers
Width	6.75 in.
Inventory Number	LEG105524
MPN	105-524

• Specification Sheet
