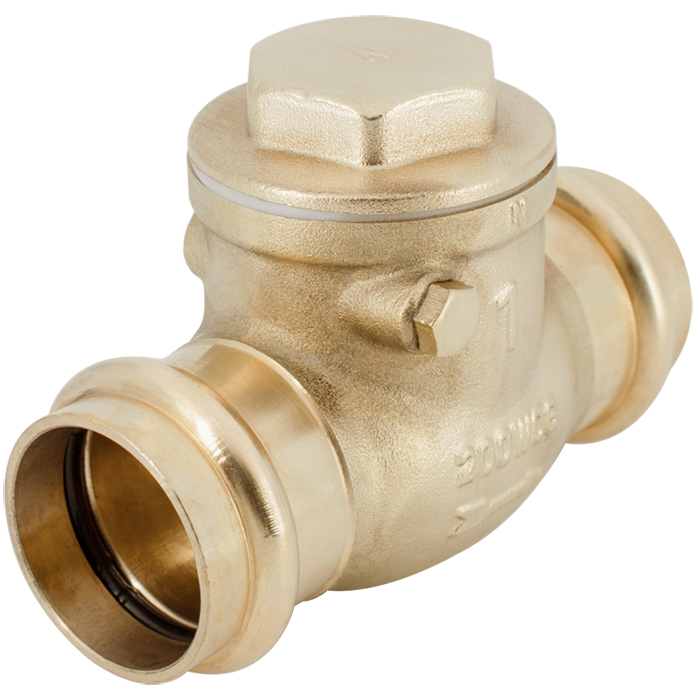

The Legend Valve 105-004NL is a 3/4-inch P-451NL no-lead press swing check valve suitable for potable water applications. It features a press x press connection and is made from lead-free cast brass. The valve is rated for 200 PSI CWP and can be installed in vertical (upward flow only) or horizontal positions.

• Press-to-connect end connections are designed for installation onto ASTM B88 types K, L and M hard-drawn copper tubing, coiled (annealed) soft copper tubing is not recommended, but can be used if ends are made round
• A durable, full-pattern cast brass body resists distortion and maintains sealing integrity after the pressing process
• Large, integral seat and disc sealing surfaces assure positive closure
• T-pattern body permits either vertical (upward flow only) or horizontal (assembly cap upright) installations

Weight	0.6 lb
Connection Size	3/4 in.
Height	1.55 in.
Length	5.95 in.
Material	Brass
Type	Check Valves
Width	4.10 in.
Inventory Number	LEG105004NL
MPN	105-004NL

• Specification Sheet
