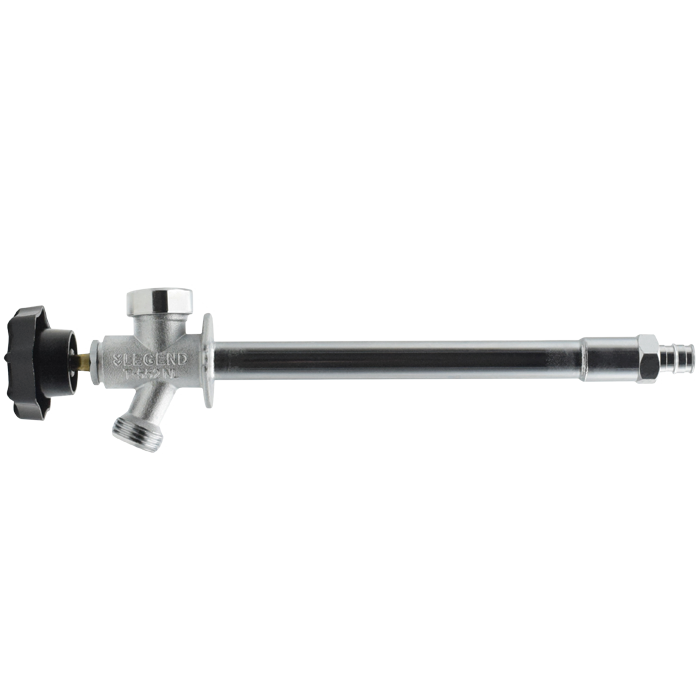

The Legend Valve 108-143NL is a 1/2-inch x 8-inch T-552PNL frost-free sillcock with a PEX (F1807) inlet and a male garden hose thread outlet. It features a multi-turn operation and includes an integrated anti-siphon vacuum breaker. The valve is lead-free and suitable for potable water systems.

• Durable chrome-plated body offers superior corrosion-resistance over unplated versions
• Extended hub handwheel moves the operator's hands away from the sharp hose bibb threads
• Equipped with an anti-siphon vacuum breaker and internal check valve, to prevent backflow into the potable water system
• 1/2" T-1009NL full port compression ball valve with forged brass body, featuring a bottom-loaded, blowout-proof stem and dual EPDM rubber O-ring design for enhanced durability.

Weight	1.01 lb
Connection Size	1/2 in.
Connection Type	Crimp
Height	2.30 in.
Length	12.55 in.
Material	Brass
Sub Type	PEX Crimp Valves
Type	PEX Valves
Width	3.60 in.
Inventory Number	LEG108143NL
MPN	108-143NL

• Specification Sheet
