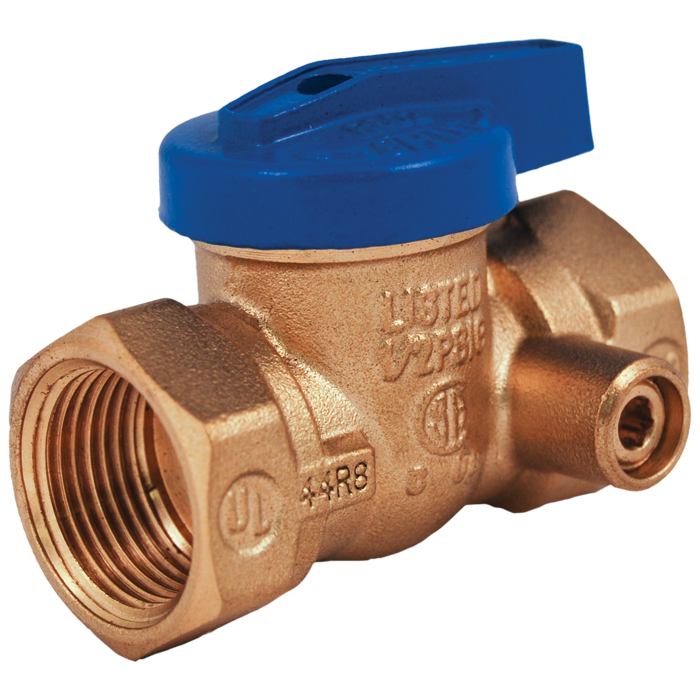

The Legend Valve 102-514 is a 3/4-inch T-3100 forged brass gas ball valve featuring a side tap for pressure testing. It is designed for residential and commercial gas applications.

• Chrome-plated ball and soft seats resist contamination build-up and offer a positive seal in low- or moderate-pressure gas applications
• Quarter-turn, ball type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cocks
• The 175 psi pressure rating permits high-pressure air tests, without the grease seal blowout common to plug-type gas cocks
• Two different configurations, to accommodate all gas connection types
• Equipped with an integral 1/8 in NPT tapped manometer test port and plug, eliminating the need for a separate test port fitting and shut-off valve near the appliance pilot assembly
• Commercial-grade synthetic fiber thrust washer
• ASTM B-124 UNS C37700 forged brass stem retainer bushing and test port plug

Weight	0.65 lb
Color	Brass Tones
Connection Size	3/4 in.
Connection Type	Threaded
Finish	Forged Brass
Height	1.90 in.
Length	5.35 in.
Type	Gas Valves
Width	3.55 in.
Inventory Number	LEG34GASSIDETAP
MPN	102-514

• Specification Sheet
