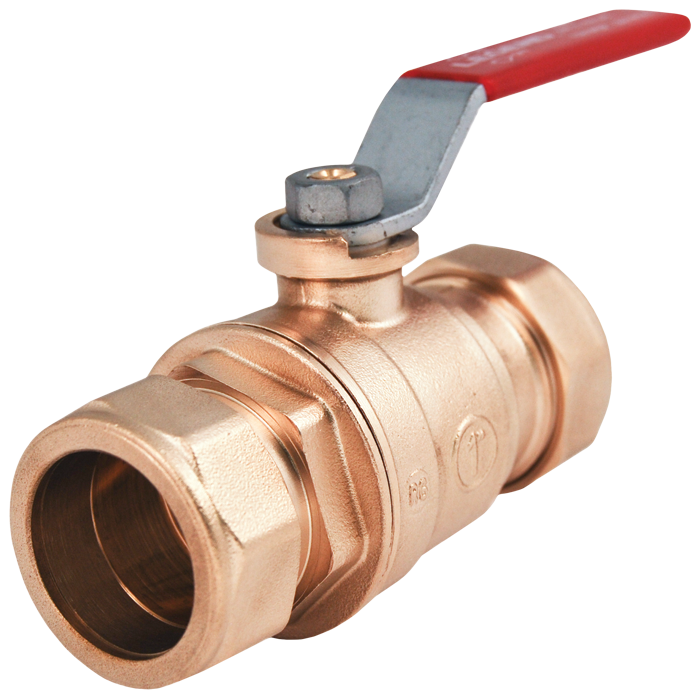

The Legend Valve 101-644NL is a 3/4-inch T-1009NL lead-free forged brass full port ball valve with compression connections. It is ideal for potable water applications requiring easy installation without soldering.

• Lead-free design is suitable for all lead-free potable water installations, in full compliance of all lead-free plumbing laws
• Tubing compression connections permit easy, convenient, lead-free compliant replacement of a worn, leaded valve, without the need for sweating
• Quarter-turn, positive shut-off full port design, make the T-1009NL the ideal replacement for a leaking multi-turn, drip tight, reduced port gate valve
• Self-cleaning chrome-plated ball resists mineral build-up and scaling typically found in harsh, varying water conditions
• Maintenance-free dual O-ring stem design
• Bottom loaded blowout-proof stem

Weight	0.78 lb
Color	Brass
Connection Size	3/4 in.
Finish	Forged Brass
Height	1.45 in.
Length	6.50 in.
Type	Ball Valves
Width	2.45 in.
Inventory Number	LEG34COMPBALL
MPN	101-644NL

• Specification Sheet
