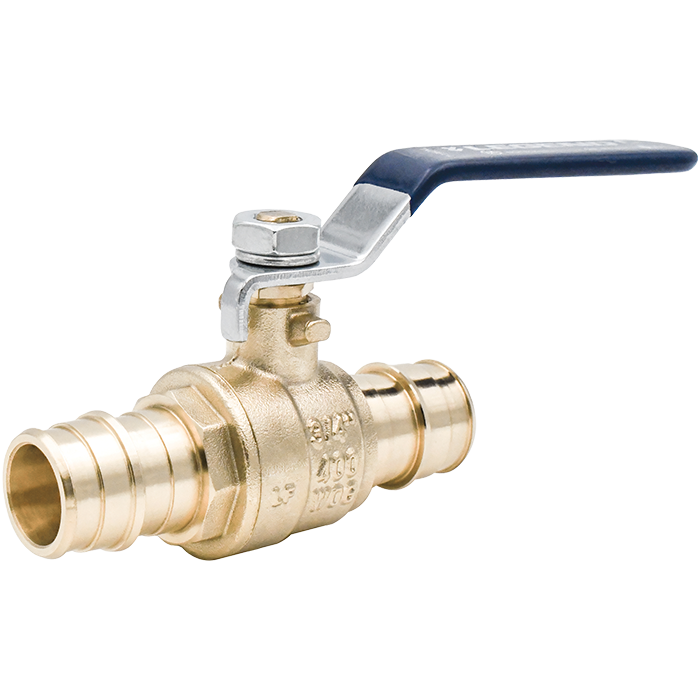

The Legend Valve 101-544NL is a 3/4-inch T-1960NL no-lead PEX ball valve designed for cold expansion PEX systems. Its full port design ensures optimal flow, and the DZR forged brass construction resists corrosion.

• Dezincification-resistant (DZR) forged brass construction resists corrosion from exposure to a wide variety of water conditions
• Bottom loaded blowout-proof stem features a dual-seal PTFE packing and EPDM rubber O-ring design, assuring positive sealing under a multitude of conditions
• Self-cleaning chrome-plated ball resists mineral build-up and scaling
• Barbed end connections are designed for use with PEX (ASTM F876 and 877) and PERT (ASTM F2769)
• Designed for use with cold-expansion rings that are manufactured in compliance with ASTM F1960

Weight	0.49 lb
Color	Brass
Finish	Forged Brass
Height	1.25 in.
Length	5.30 in.
Type	Ball Valves
Width	2.40 in.
Inventory Number	LEG34UPOBALL
MPN	101-544NL

• Specification Sheet
