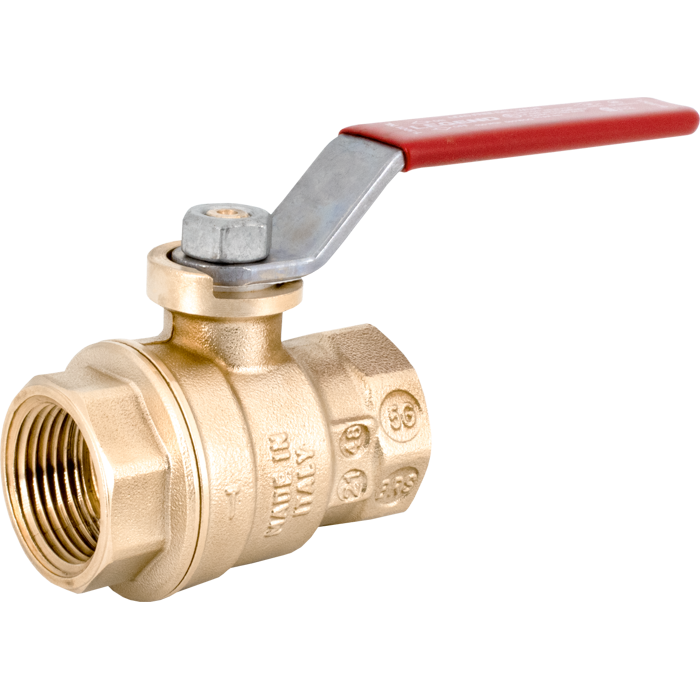

The Legend Valve 101-024NL is a 3/4-inch T-1001NL no-lead full port ball valve designed for maximum flow and minimal pressure drop. It features FNPT x FNPT connections and a quarter-turn handle.

• Lead-free design is suitable for all no-lead potable water installations, in full compliance of all lead-free plumbing laws
• Bottom loaded blow-out-proof stem
• Maintenance-free dual O-ring stem seal
• Improved Dyneon TFM PTFE seats

Weight	0.62 lb
Color	Brass Tones
Connection Size	3/4 in.
Connection Type	Threaded
Finish	Forged Brass
Height	1.55 in.
Length	5.10 in.
Type	Ball Valves
Width	2.40 in.
Inventory Number	LEG34IPBALL
MPN	101-024NL

• Specification Sheet
