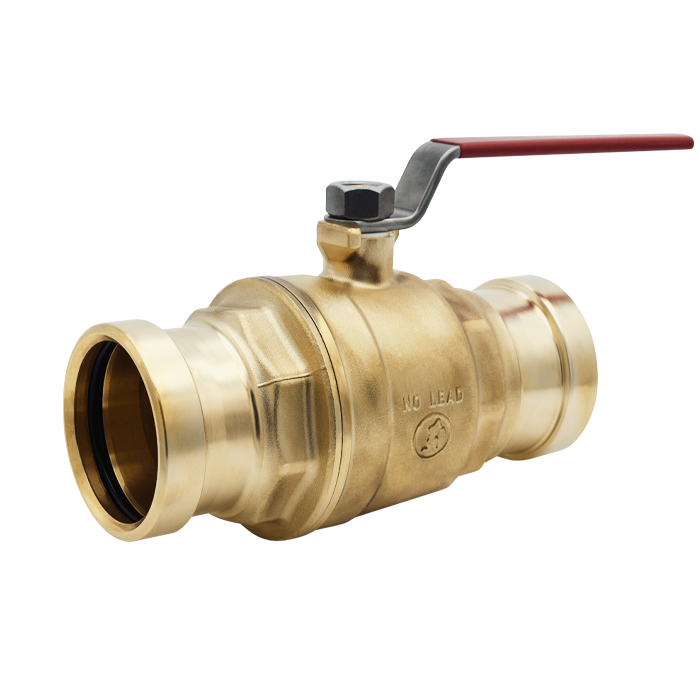

The Legend Valve 101-009NL is a 2-1/2-inch P-200NL series ball valve featuring press-to-connect ends, designed for efficient installation without soldering. Constructed from lead-free forged brass, it ensures compliance with potable water standards. The valve offers a full port design for optimal flow and is suitable for commercial and residential applications.

• Lead-free design is suitable for all no lead potable water installations in full compliance of all lead-free plumbing laws
• Press-to-connect end connections are designed for installation onto ASTM B88 types K, L and M hard drawn copper tubing
• Deeper tubing sockets at each connection provide extra stability during the pressing process
• Press type end connections eliminate the need for soldering and brazing, reducing labor and material costs and eliminating the fire hazard associated with the process
• Oversized lever handle is ideal for commercial applications
• 2-1/2 in P-200NL legend press lead-free forged brass ball valve

Weight	8.1 lb
Color	Brass
Connection Size	1/2 in.
Finish	Forged Brass
Height	5.20 in.
Length	13.15 in.
Type	Ball Valves
Width	6.85 in.
Inventory Number	LEG101009NL
MPN	101-009NL

• Specification Sheet
