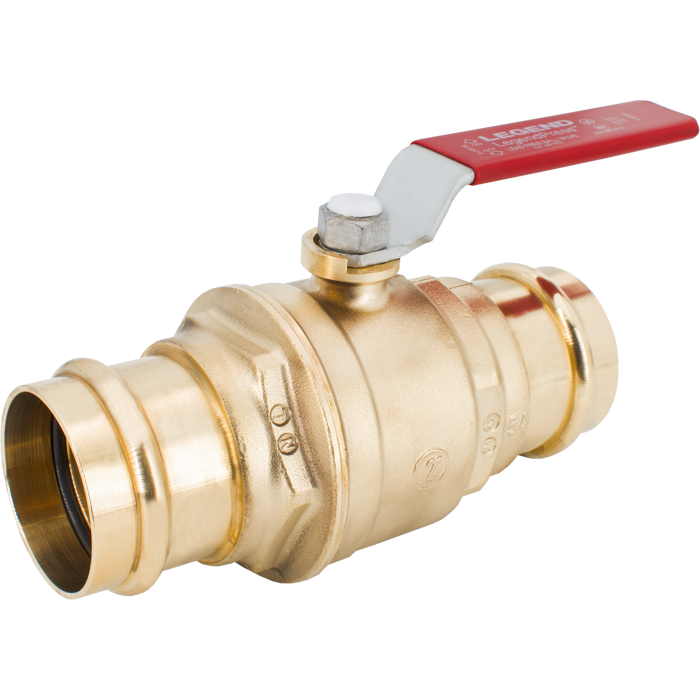

The Legend Valve 101-008NL is a 2-inch P-200NL series ball valve with press connections, facilitating quick and secure installations. Made from lead-free forged brass, it is ideal for potable water systems. The full port design ensures minimal pressure drop and maximum flow efficiency.

• Press-to-connect end connections are designed for installation onto ASTM B88 types K, L and M hard-drawn copper tubing
• Deeper tubing sockets and dual O-ring at each connection, provide extra stability during the pressing process as well as enhanced sealing
• Press-type end connections eliminate the need for soldering, reducing labor and materials costs and eliminating the fire hazard associated with the process
• Compatible with commercially available VUS profile jaws

Weight	4.32 lb
Color	Brass
Connection Size	2 in.
Finish	Brass
Height	3.45 in.
Length	9.30 in.
Type	Ball Valves
Width	4.60 in.
Inventory Number	LEG101008NL
MPN	101-008NL

• Specification Sheet
