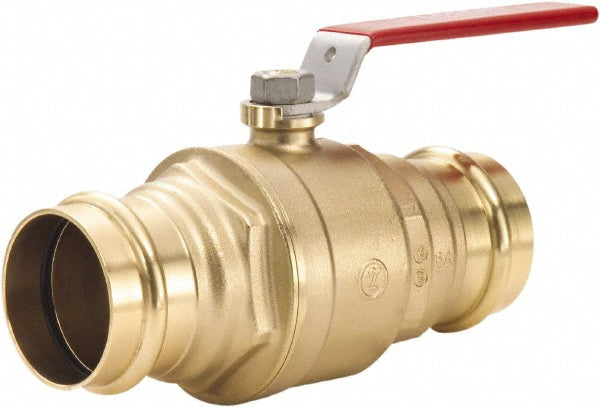

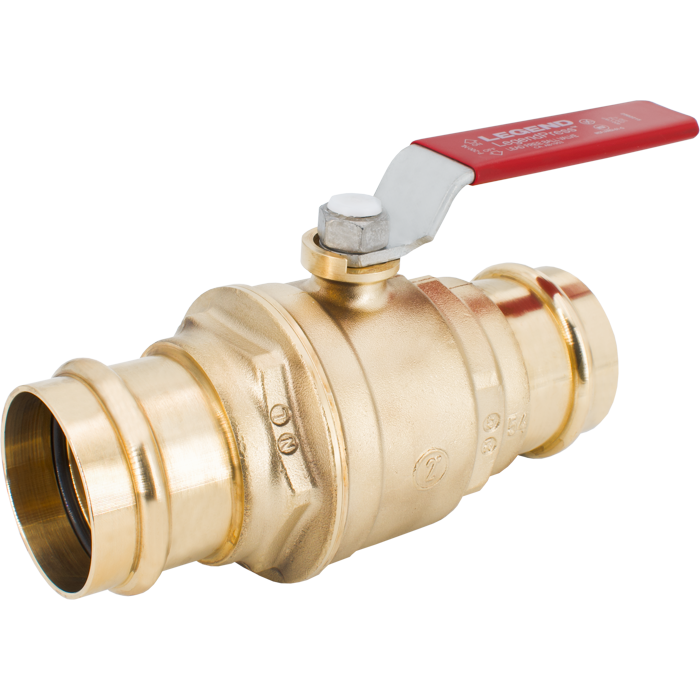

The Legend Valve 101-007NL is a 1-1/2-inch P-200NL series ball valve designed with press connections for ease of installation. Its lead-free forged brass construction ensures safety for potable water applications. The valve's full port design allows for unrestricted flow, making it suitable for various plumbing systems.

• Press-to-connect end connections are designed for installation onto ASTM B88 types K, L and M hard-drawn copper tubing
• Deeper tubing sockets and dual O-ring at each connection, provide extra stability during the pressing process as well as enhanced sealing
• Press-type end connections eliminate the need for soldering, reducing labor and materials costs and eliminating the fire hazard associated with the process
• Compatible with commercially available VUS profile jaws

Weight	2.72 lb
Color	Brass
Connection Size	1/2 in.
Finish	Brass
Height	2.85 in.
Length	8.85 in.
Type	Ball Valves
Width	3.90 in.
Inventory Number	LEG101007NL
MPN	101-007NL

• Specification Sheet
