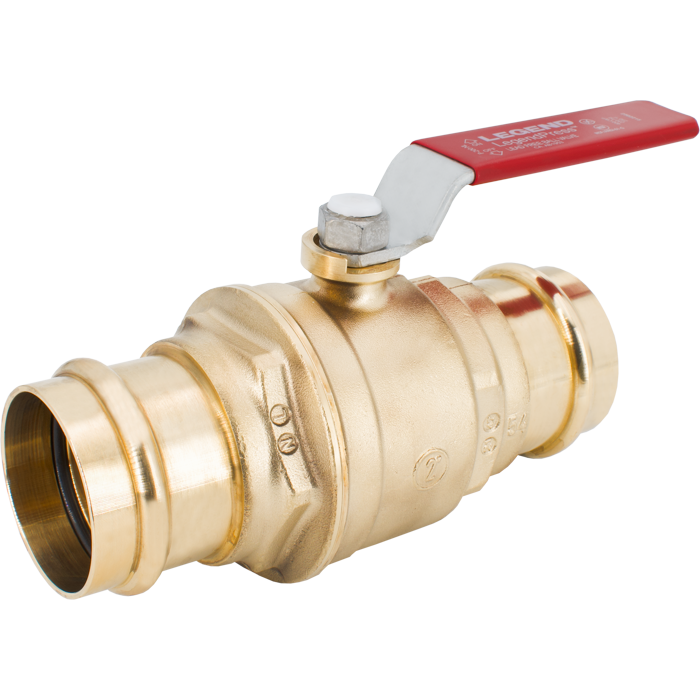

The Legend Valve 101-006NL is a 1-1/4-inch P-200NL series ball valve featuring press-to-connect ends, eliminating the need for soldering. Constructed from lead-free forged brass, it is suitable for potable water systems. The valve's full port design ensures optimal flow characteristics.

• Press-to-connect end connections are designed for installation onto ASTM B88 types K, L and M hard-drawn copper tubing
• Deeper tubing sockets and dual O-ring at each connection, provide extra stability during the pressing process as well as enhanced sealing
• Press-type end connections eliminate the need for soldering, reducing labor and materials costs and eliminating the fire hazard associated with the process
• Compatible with commercially available VUS profile jaws

Weight	1.58 lb
Color	Brass
Connection Size	1/4 in.
Finish	Brass
Height	2.30 in.
Length	6.40 in.
Type	Ball Valves
Width	3.20 in.
Inventory Number	LEG101006NL
MPN	101-006NL

• Specification Sheet
