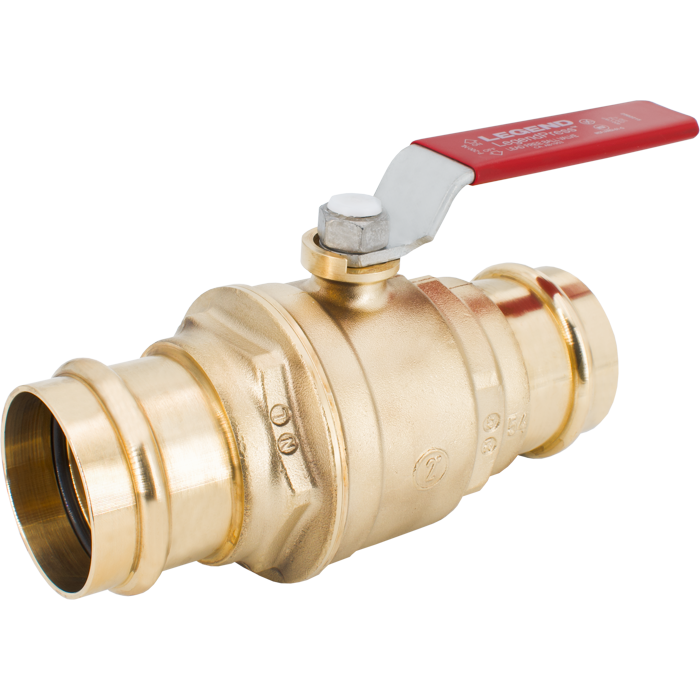

The Legend Valve 101-005NL is a 1-inch P-200NL series ball valve with press connections, designed for quick and reliable installations. Made from lead-free forged brass, it meets standards for potable water use. The full port design provides maximum flow capacity.

• Press-to-connect end connections are designed for installation onto ASTM B88 types K, L and M hard-drawn copper tubing
• Deeper tubing sockets and dual O-ring at each connection, provide extra stability during the pressing process as well as enhanced sealing
• Press-type end connections eliminate the need for soldering, reducing labor and materials costs and eliminating the fire hazard associated with the process
• Compatible with commercially available VUS profile jaws

Weight	1.17 lb
Color	Brass
Connection Size	1 in.
Finish	Brass

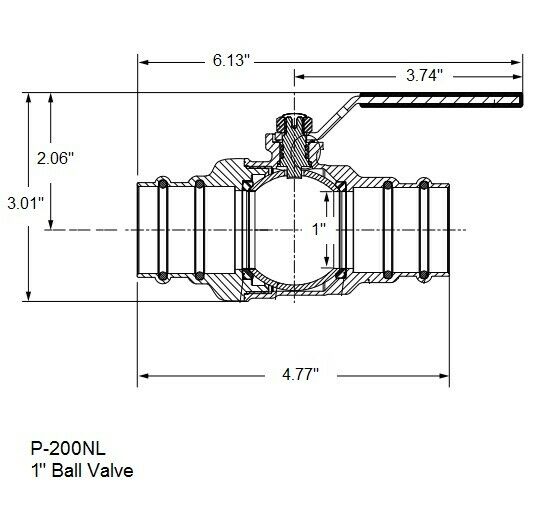

Height	6.13 in.
Length	4.77 in.
Material	Forged Brass
Type	Ball Valves
Width	3.01 in.
Inventory Number	LEG101005NL
MPN	101-005NL

• Specification Sheet
