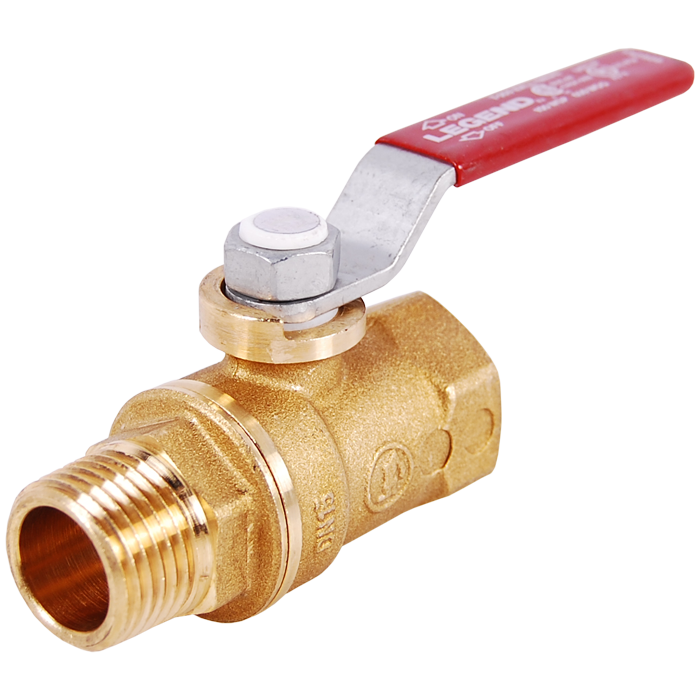

The Legend Valve 101-520 is a 1/8-inch T-900 forged brass ball valve with MNPT x FNPT connections. It features a lever handle and is ideal for confined piping installations.

• Space-saving male-by-female end connections are ideal for confined piping installations
• T-handle equipped models can be used as gauge-cock isolation valves, without the gauge face obstruction associated with a lever-handle equipped valve
• Bottom-loaded blowout-proof stem is a maintenance-free, dual O-ring seal design, eliminating the need to tighten a packing nut
• Improved 3M Dyneon TFM PTFE seats and thrust washers provide enhanced sealing and isolation between the body and ball-stem-handle rotating assembly
• 3M Dyneon TFM PTFE anti-friction thrust washer and washer, ASTM A-510 UNS G10060 dacromet-coated steel ASTM A-510 UNS G10060 with PVC resin lock handle nut, ASTM B-124 UNS C37700 forged brass end adapter

Weight	0.5 lb
Color	Brass
Connection Size	1/8 in.
Finish	Forged Brass
Height	0.70 in.
Length	3.25 in.
Sub Type	Adapters
Type	Galvanized Fittings
Width	1.40 in.
Inventory Number	LEG18BALLIPMXF
MPN	101-520
