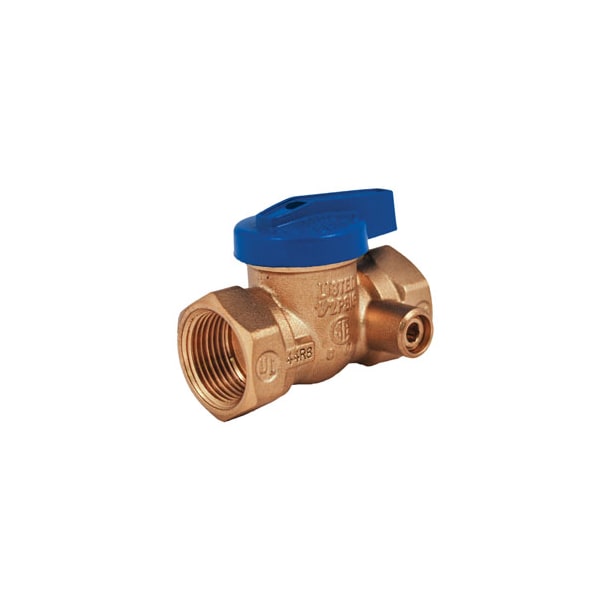

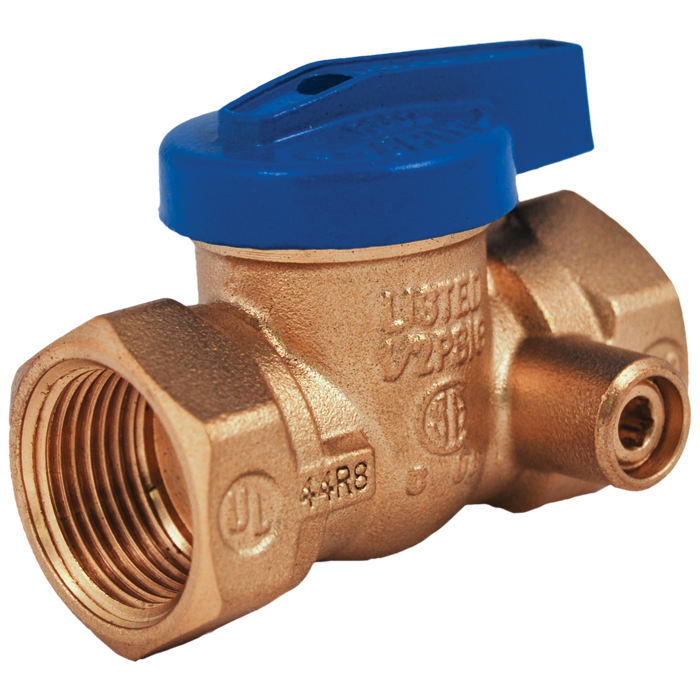

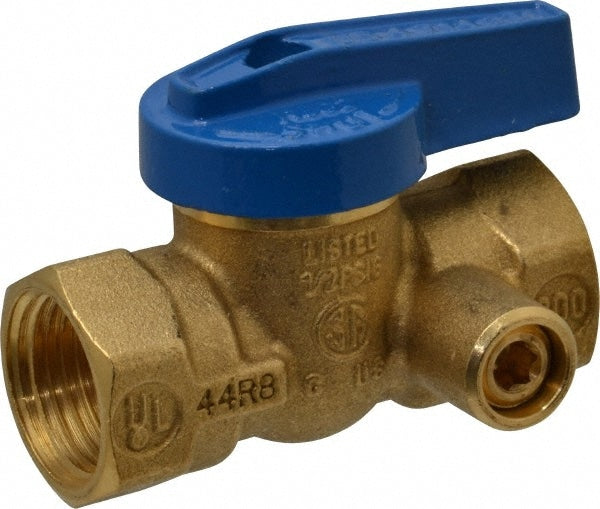

The Legend Valve 102-513 is a 1/2-inch T-3100 forged brass gas ball valve with FNPT x FNPT connections and an integrated 1/8" NPT tapped manometer test port and plug. It is suitable for residential and commercial gas installations.

• Patented one piece forged brass body eliminates the possibility of seam leaks common to two piece body designs
• Equipped with an integral 1/8 in NPT tapped manometer test port and plug, eliminating the need for a separate test port fitting and shut-off valve near the appliance pilot assembly
• Chrome-plated ball and soft seats resist contamination build-up and offer a positive seal in low- or moderate-pressure gas applications
• Quarter-turn, ball type, forged brass design is more compact and superior to traditional cast bronze or cast iron gas cocks
• The 175 psi pressure rating permits high-pressure air tests, without the grease seal blowout common to plug-type gas cocks
• Not suitable for steam service
• CSA certified for use with natural, manufactured, mixed, liquid petroleum and LP gas/air mixtures

Weight	0.43 lb
Color	Brass Tones
Connection Size	1/2 in.
Connection Type	Threaded
Finish	Forged Brass
Height	1.75 in.
Length	5.15 in.
Sub Type	Adapters
Type	Brass Fittings
Width	3.70 in.
Inventory Number	LEG12GASWTESTPORT
MPN	102-513

• Specification Sheet
