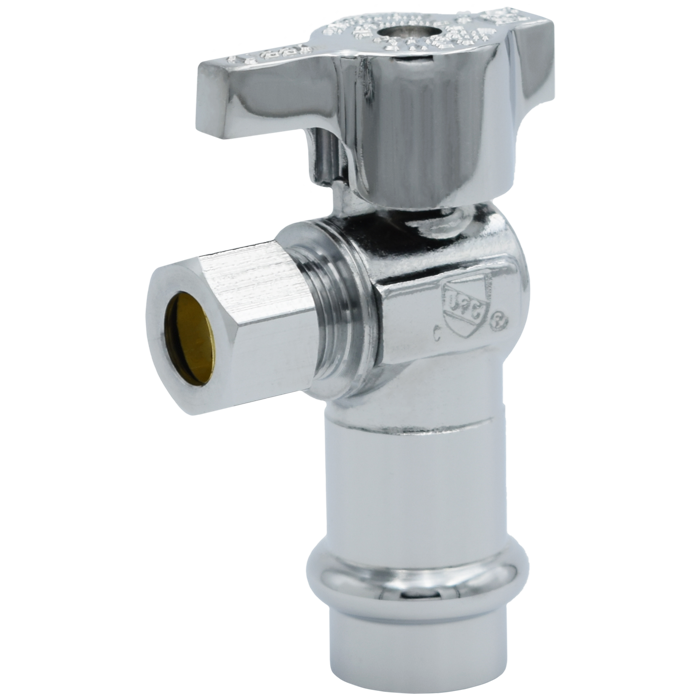

Angle stop valve designed for quick shut-off in tight spaces, offering a durable press-to-compression configuration.

• 1/4-turn, self-cleaning ball valve design resists mineral and scale build-up, assuring positive shut-off and re-opening
• The ball seat operation and dual O-ring stem seal features, out perform traditional multi-turn stop designs
• Compact, chrome-plated, forged brass bodies are both durable and decorative
• Manufactured for installation into ASTM B88 types K, L and M hard-drawn copper tubing
• VUS-pattern press-to-connect tubing sockets

Weight	0.5 lb
Connection Size	1/2 in.
Height	1.20 in.
Length	3.05 in.
Material	Brass
Type	Ball Valves
Width	2.30 in.
Inventory Number	LEG114904PNL
MPN	114-904PNL

• Specification Sheet
