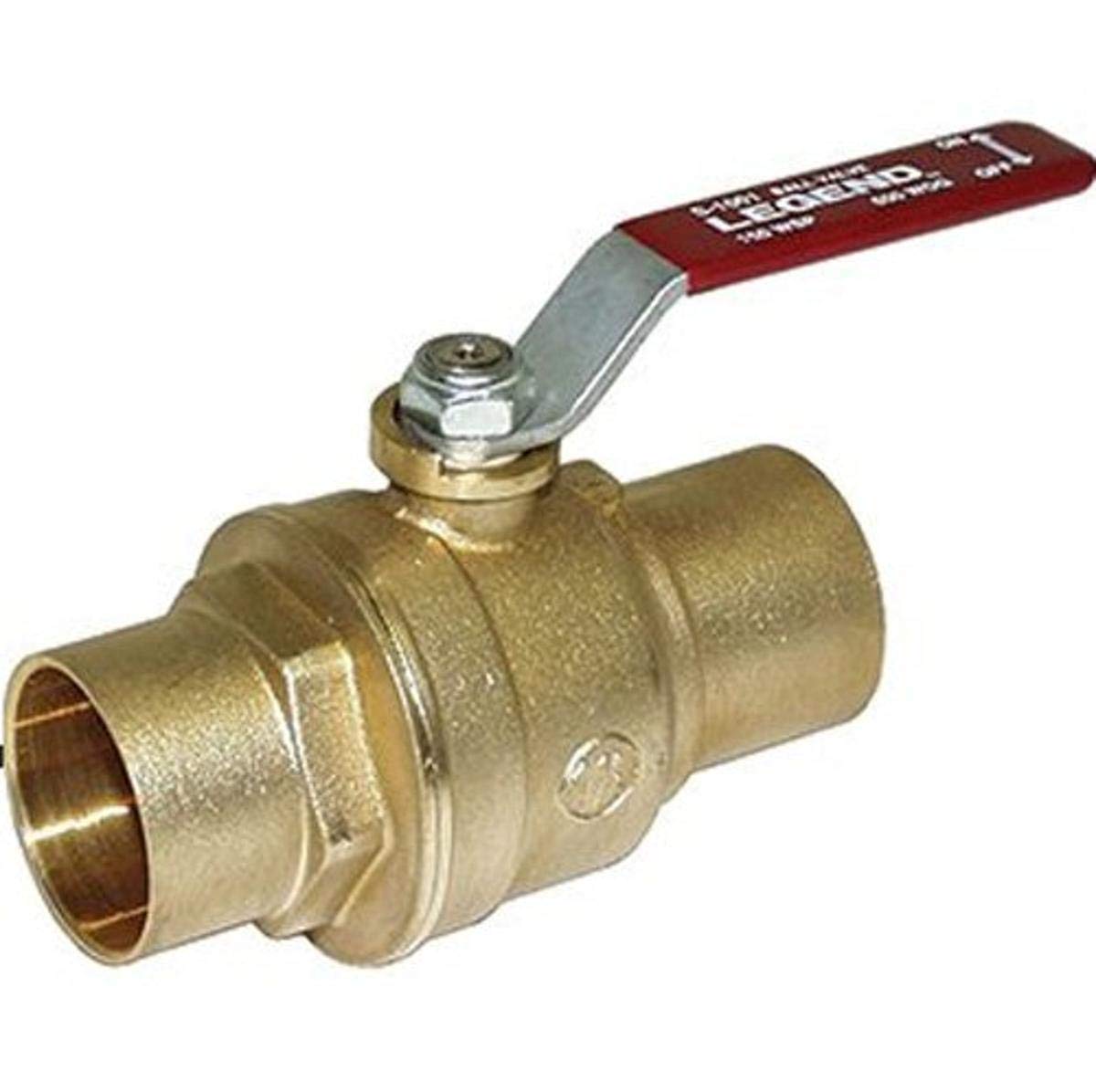

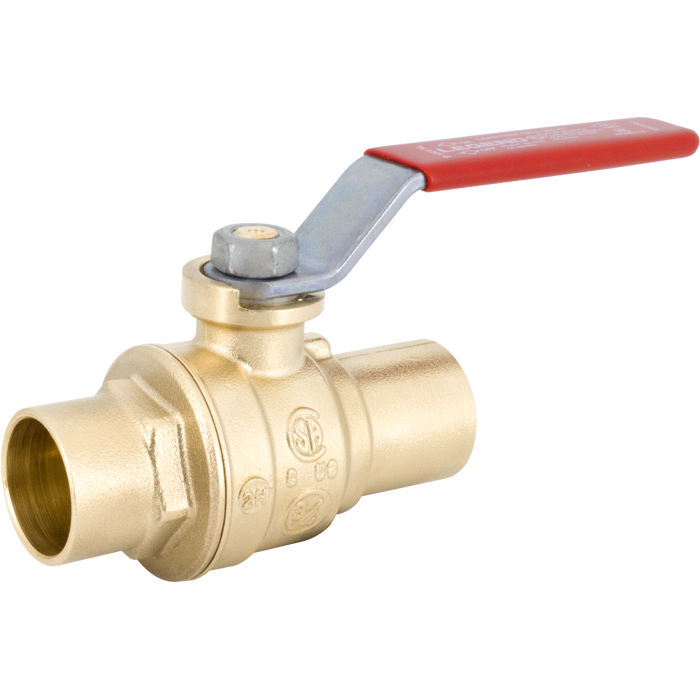

The Legend Valve 101-047NL is a 1-1/2-inch S-1001NL no-lead forged brass full port ball valve with sweat x sweat connections. It is designed for maximum flow and minimal pressure drop in potable water systems. The valve is rated for 600 psi CWP and 150 psi WSP.

• 1-1/2 S-1001 No Lead Forged Brass Full Port Ball Valve
• Working Steam Pressure: 150 WSP
• Conforms to Federal Specification WW-V-35C
• Pressure Rating: 600 WOG NON-SHOCK

Weight	2.16 lb
Color	Brass
Connection Size	1/2 in.
Finish	Forged Brass
Height	2.75 in.
Length	7.95 in.
Type	Ball Valves
Width	3.85 in.
Inventory Number	LEG112COPBALL
MPN	101-047NL

• Specification Sheet
