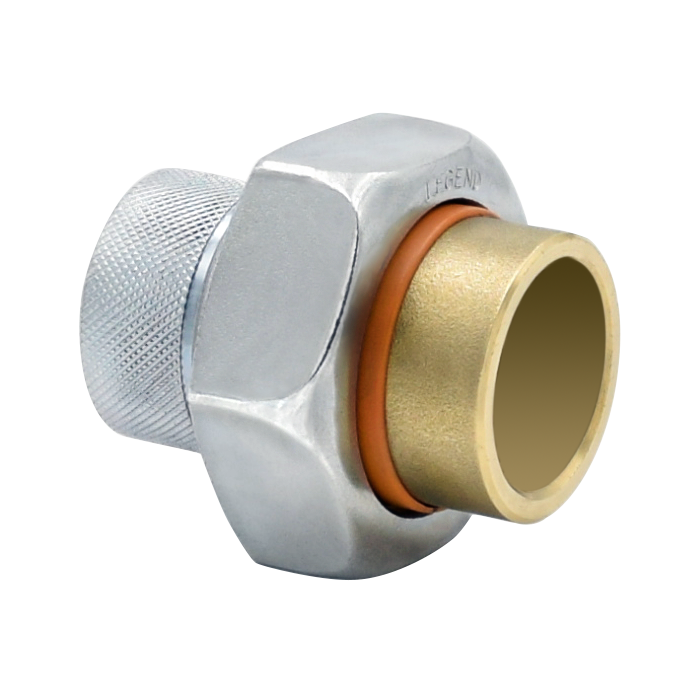

The Legend Valve 301-107NL is a 1-1/2-inch T-571NL dielectric union designed to prevent galvanic corrosion between dissimilar metals. It features a forged carbon steel body with a galvanized finish and a lead-free brass adapter. The union has FNPT x sweat connections and is rated for 200 psi

• Designed to reduce galvanic corrosion where two-dissimilar metals are joined
• Self-aligning, non-conductive elastomer gasket and thermoplastic insert create a positive seal and complete isolation between the tubing and piping ends
• High strength, galvanized forged steel construction make them ideal for residential and commercial applications
• No-lead

Weight	1.34 lb
Connection Size	1/2 in.
Height	2.50 in.
Length	2.75 in.
Material	Brass
Sub Type	Union Fittings
Type	Dielectric Unions & Nipples
Width	2.75 in.
Inventory Number	LEG112DIEUN
MPN	301-107NL

• Specification Sheet
