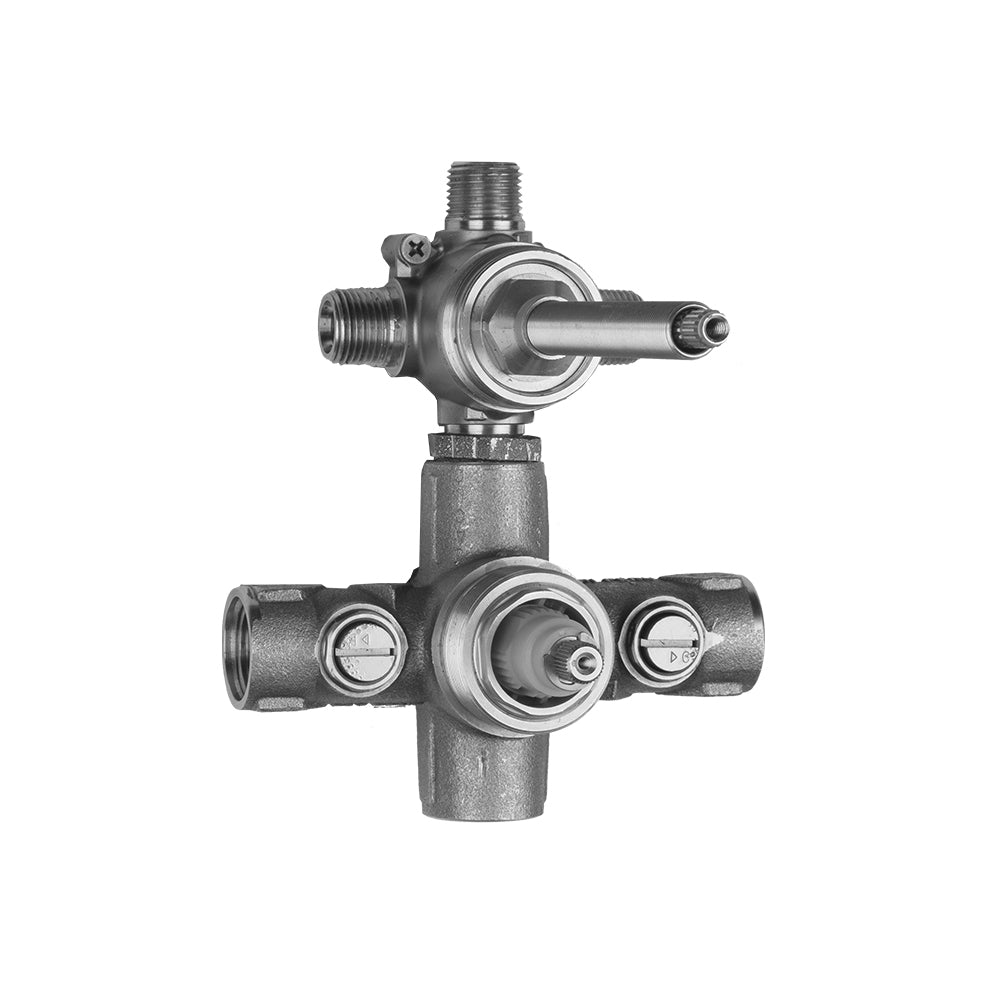

• Thermostatic valve with built in diverter/shut off for easier installation and clean appearance
• Top valve is a two way diverter that consists of inlet for water, two outlets, & a shared function (see J-20687 for operation)
• Bottom valve is a Thermostatic mixing valve that maintains a constant water temperature automatically, regardless of incoming hot & cold water pressure & temperature. Set valve to desired temperature & no need to adjust further
• Anti-scald protection
• Diverter: 1/2" NPT male ports / Thermostatic: 3/4" NPT female ports
• 12 GPM flow @ 60 PSI

Weight	4.0 lb
Connection Size	3/4 in.
Height	7.50 in.
Length	7.00 in.
Type	Thermostatic Mixing Valves
Width	3.68 in.
Inventory Number	JACJTH34687
MPN	J-TH34-687

• Spec Sheet
• Installation Instructions
