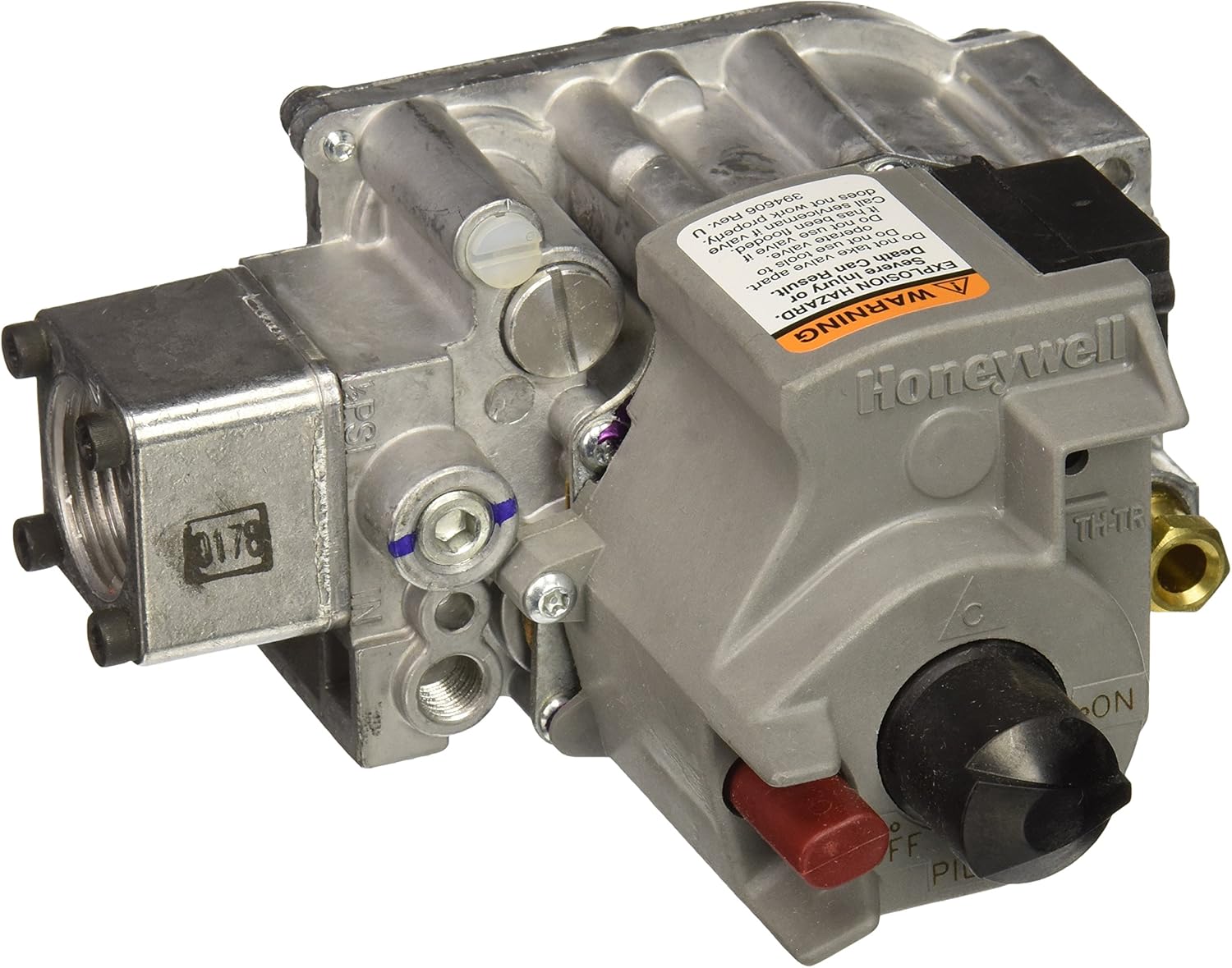

Honeywell VR8300H4501 Slow Opening Dual Standing Pilot Gas Valve - 3/4" x 3/4"
Honeywell VR8300H4501 Slow Opening Dual Standing Pilot Gas Valve - 3/4" x 3/4"
Hurry up, only 1 item left in stock.
Project Pricing
Get Accurate Project Pricing for Your Plumbing Needs
Project pricing at Plumbing-Deals is tailored to meet your specific project. The size of a plumbing job that qualifies as a project can vary, generally its larger than a single bathroom or kitchen remodel. By submitting the form or calling, you're taking the first step towards receiving a customized quote that considers your project's scope, timeline, and budget, ensuring a seamless and cost-effective solution for your plumbing parts and supplies.
Ready to get started? Call us at 888-682-5956, and let's make your plumbing project a success!
Couldn't load pickup availability
Product Overview:
Combination gas control for use in 24 Vac, gas-fired, standing pilot appliances with capacities from 30 to 300 cfh
Product Features:
- Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment
- Compact size
- Provide two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends
- Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted
- Meets codes requiring dual safety shutoff
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
- Compatible with ECO connector
- LITE-RITE (OFF-PILOT-ON) lighting sequence
Product Specifications:
- Description: 24 Vac Dual Standing Pilot Gas Valve with 3/4 in. x 3/4 in. inlet\outlet, slow opening and 3.5 in. wc pressure regulator setting
- Type: Single Stage
- Ignition Type: Standing Pilot
- Type of Gas: Natural
- Inlet/Outlet Size (in.): 3/4 in. x 3/4 in.
- Body Pattern: Straight through with integral tapping; with flange
- Opening Characteristics: Slow Opening
- Capacity @ 1 in. p.d.: 200,000 BTU /hr; 30,000 BTU /hr minimum
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.5 kPa
- Pressure Regulator Setting (psi): 3.5 in. wc
- Pressure Regulator Setting (kPa): 0.87 kPa
- Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
- Pressure Tapping: 1/8 in. NPT with plug
- Electrical Connections: 1/4 in. quick-connect male terminals
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz
- Anticipator Setting: 0.7 A
- Temperature Range (F): 0 F to 175 F
- Temperature Range (C): -18 C to +79 C
- Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
- Dimensions (in.): 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep
- Dimensions (mm): 135 mm high x 104 mm wide x 69 mm deep
- Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025006
- Approvals, Canadian Gas Association: CGA Design Certified: File No. L2025006
- Approvals, Underwriters Laboratories Inc: UL Component Recognized
| Weight | 1.0 lb |
|---|---|
| Height | 6.00 in. |
| Length | 6.00 in. |
| Width | 4.00 in. |
| Inventory Number | HONVR8300H4501 |
| MPN | VR8300H4501 |
