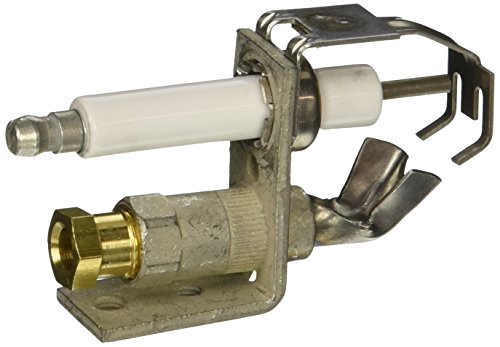

Non primary-aerated combination pilot burner and ignitor. Used with the S86, S860, S8610, or S8670 in intermittent pilot systems.

Specifications:

• Type of Gas: Natural
• Mounting Bracket: B
• Compression Fitting Size: 1/4 in.
• Compression Fitting Length: 0.78 in.
• Orifice: BCR-18 (0.018 in.)
• Direction of Front Tip (F): Front
• Tip Style: Single
• Aeration: Non-primary
• Leadwire Temperature Ratings (C): Max. at electrode tip: 968 C
• Includes: Special mounting bracket with screws to convert "B" bracket to "A" bracket

Features:

• For natural gas with a BCR-18 orifice
• Front single tip style
• "B" mounting bracket
• Non-primary aeration

Weight	0.5 lb
Height	2.00 in.
Length	3.00 in.
Width	2.00 in.
Inventory Number	HONQ345A1305
MPN	Q345A1305
