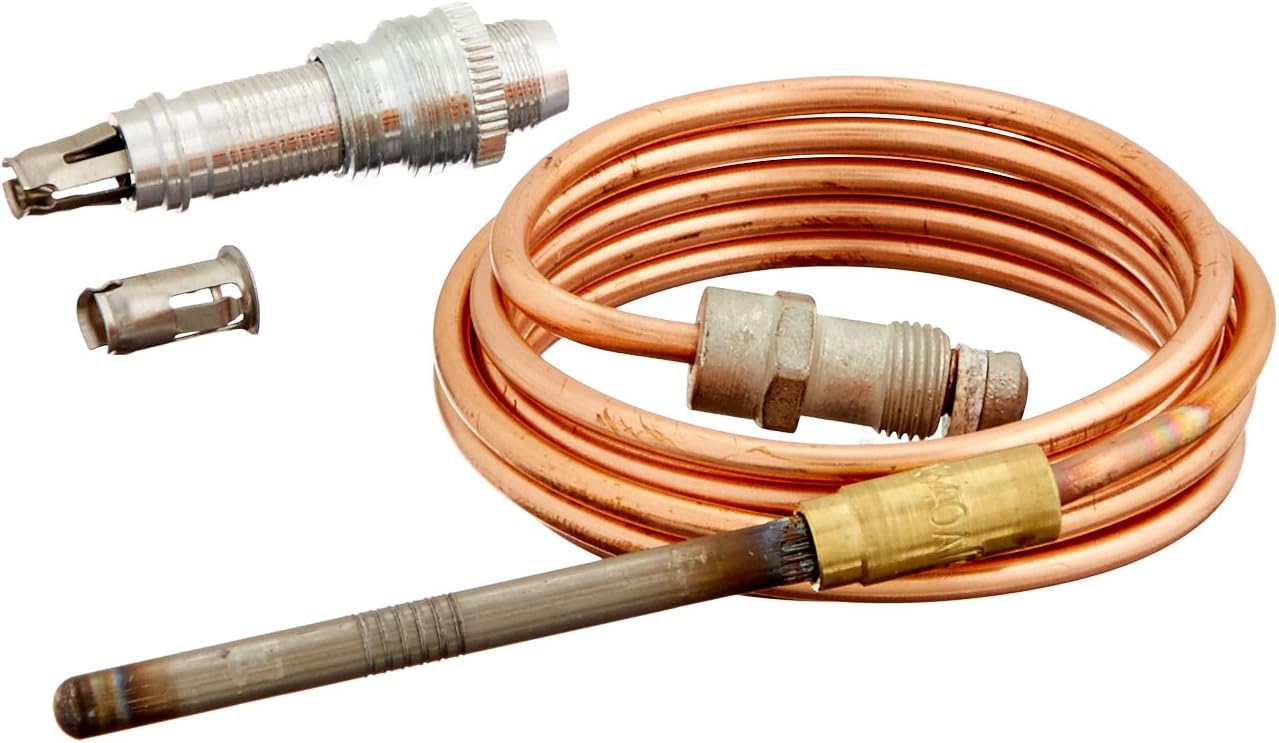

The Q340A is a premium thermocouple with the long life and durability that you demand. Built with a maximum amount of copel, the Q340A will provide long-lasting service.

Specifications

• Voltage: 30 mV
• Connection Type: 11/32 32 Male Connector Nut
• Lead Length (in.): 48 in.
• Open Circuit Output (mV): 26 mV to 32 mV
• Resistance: 0.02 ohm
• Temperature Ratings (F): Hot Junction 1400 F
• Temperature Ratings (F): Cold Junction 780
• Includes: Adapter and Push In Clip

Features

• Push-in clip, split nut, and adapter assembly for easy pilot burner installation.
• Spade or quick-connect terminals available for millivolt gas control connections.

Weight	1.0 lb
Height	2.00 in.
Length	3.00 in.
Width	2.00 in.
Inventory Number	HONQ340A1108
MPN	Q340A1108
