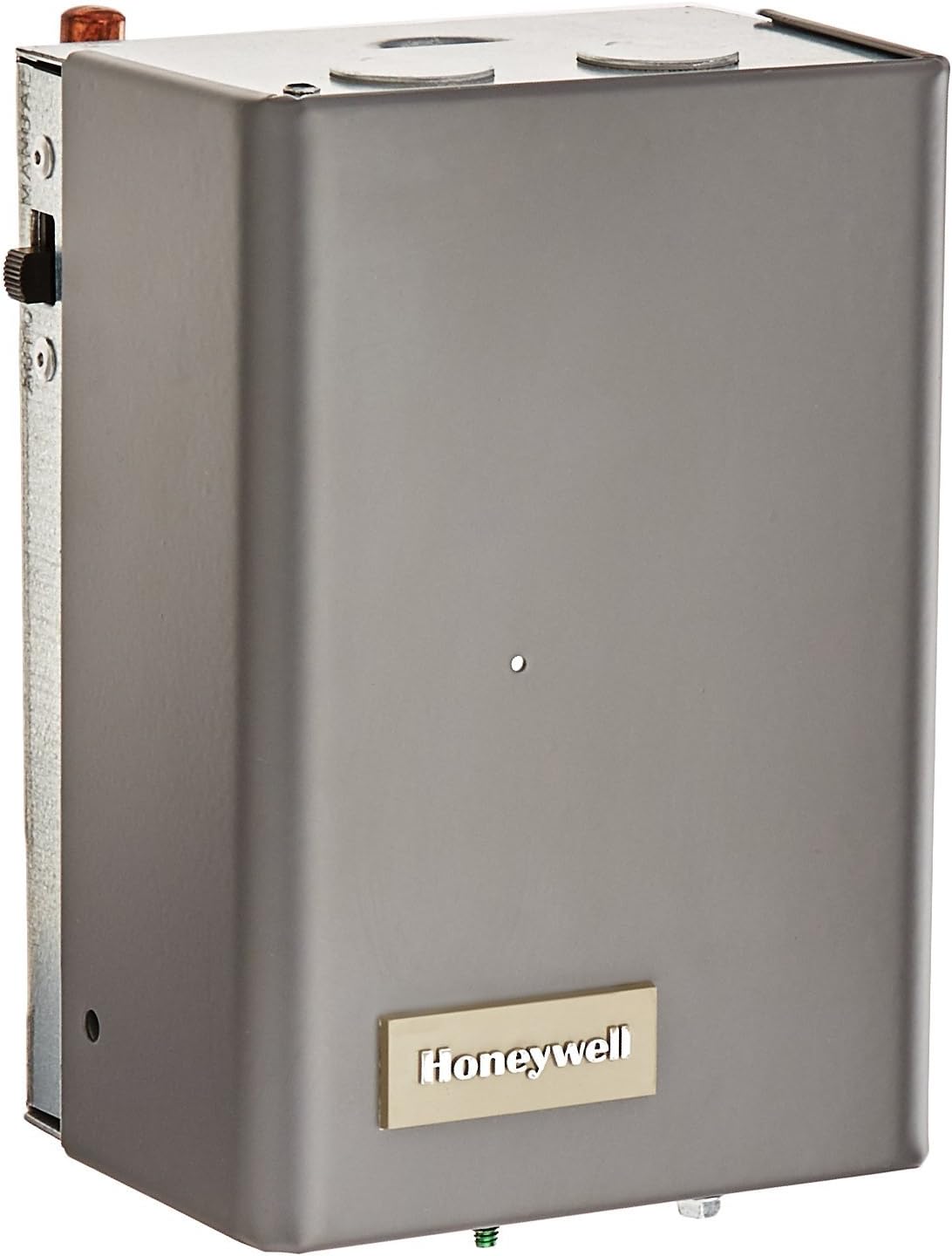

Immersion-type controllers that combine high limit protection with switching relay control of burner and circulator motors.

Features

• High limit opens burner circuit only.
• Include transformer and accessory terminals for adding a remote low limit controller.
• Case available for horizontal or vertical mounting.
• Requires a 24 Vac thermostat with heat anticipatory set at 0.2A.

Specs

• Application: High Limit
• Switch Action: SPST
• Electrical Rating: Burner: 3.7 A @ 240 Vac, Burner: 7.4 A @ 120 Vac, Circulator: 3.7 A @ 240 Vac, Circulator: 7.4 A @ 120 Vac, 0.25 A @ 0.25 to 12 Vdc
• Electrical Ratings (ALR): Burner: 44.4 A @ 120 Vac, Circulator: 22.2 A @ 240 Vac, Burner: 22.2 A @ 240 Vac, Circulator: 44.4 A @ 120 Vac
• Temperature Range (F): 120F to 240F
• Differential: 8F,
• Fixed Height: 6-1/8"
• Width: 4-3/8"
• Depth: 3-1/8"
• Operating Humidity: 0% to 95% (non-condensing)
• Mount: Horizontal or Vertical
• Max Ambient Temp: 150F with 1.2A 24V Load, 77F with 1.4A 24V Load
• Connection Type: Quick-Connect
• Capillary Length: 4-1/2"
• Anticipator Rating: 0.2 A
• Voltage: 120v
• Frequency: 60 Hz
• Max Pressure (PSI): 255 psi @ Immersion Well

Weight	4.3 lb
Height	6.00 in.
Length	8.00 in.
Width	4.00 in.
Inventory Number	HONL8148J1009
MPN	L8148J1009
