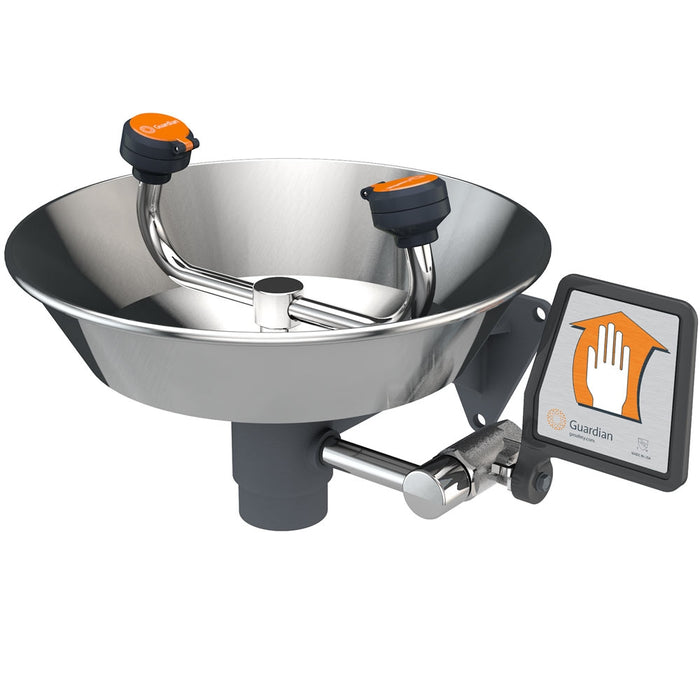

• Application: Eyewash with stainless steel bowl for wall mounting. Two GS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes.
• Spray Head Assembly: Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
• Valve: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals.
• Bowl: 11-1/8" diameter stainless steel.
• Mounting: Heavy duty cast aluminum wall bracket with corrosion resistant powder coated finish.
• Supply: 1/2" NPT female inlet.
• Waste: 1-1/4" NPT female outlet.
• Sign: ANSI-compliant identification sign.
• Quality Assurance: Unit is completely assembled and water tested prior to shipment.

Weight	17.0 lb
Color	Stainless Steel
Finish Type	Polished
Height	7.00 in.
Length	11.20 in.
Type	Eye Wash Stations
Width	11.20 in.
Inventory Number	GUAG1814
MPN	G1814
