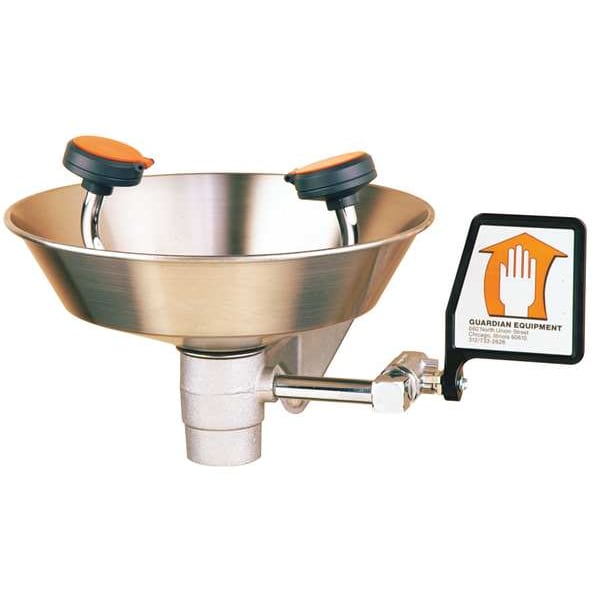

• Application: Eye/face wash with stainless steel bowl for wall mounting. Two large FS-Plus spray-type outlet heads deliver a flood of water for rinsing eyes and face.
• Spray Head Assembly: Two FS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.
• Valve: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals.
• Bowl: 11-1/8" diameter stainless steel.
• Mounting: Heavy duty cast aluminum wall bracket with corrosion resistant powder coated finish.
• Supply: 1/2" NPT female inlet.
• Waste: 1-1/4" NPT female outlet.
• Sign: ANSI-compliant identification sign.
• Quality Assurance: Unit is completely assembled and water tested prior to shipment.
• Chrome plated brass tailpiece and trap with 1-1/2" IPS waste connection.

Weight	7.0 lb
Color	Stainless Steel
Finish Type	Polished
Height	9.50 in.
Length	11.50 in.
Type	Eye Wash Stations
Width	11.50 in.
Inventory Number	GUAG1750T
MPN	G1750T
