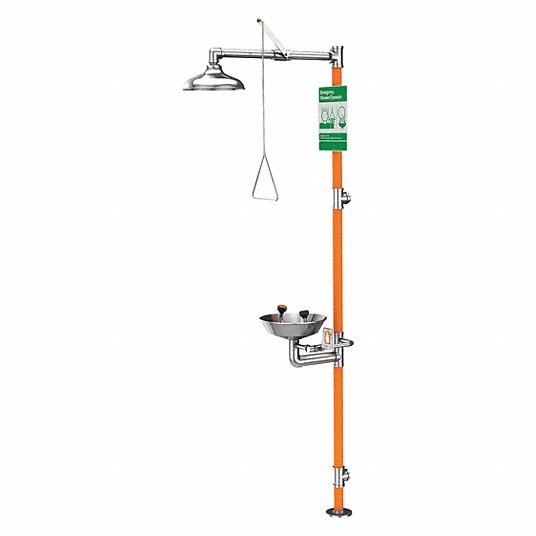

• Application: All-stainless steel combination eyewash and shower safety station. Stainless steel construction is ideal for highly corrosive environments and cleanroom applications. Eyewash features two GS-Plus spray-type outlet heads that deliver a flood of water for rinsing eyes.
• Shower Head: 10" diameter stainless steel with 20 GPM flow control.
• Shower Valve: 1" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and PTFE seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod.
• Spray Head Assembly: Two GS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from water flow.
• Eyewash Bowl: 11-1/8" diameter stainless steel.
• Eyewash Valve: 1/2" IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and PTFE seals.
• Pipe and Fittings: Schedule 40 Type 304 brushed stainless steel. Furnished with orange polyethylene pipe covers for high visibility and corrosion resistance.
• Supply: 1-1/4" NPT female top or side inlet.
• Waste: 1-1/4" NPT female outlet. Outlet can be positioned at either 8-1/4" or 19-3/8" above finished floor by reversing lower pipe nipples.
• Sign: ANSI-compliant identification sign.
• Quality Assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment.

Weight	38.15 lb
Color	Stainless Steel
Finish	Stainless Steel
Finish Type	Polished
Height	90.00 in.
Length	24.00 in.
Type	Safety Showers
Width	5.75 in.
Inventory Number	GUAG1991
MPN	G1991

• Spec Sheet
