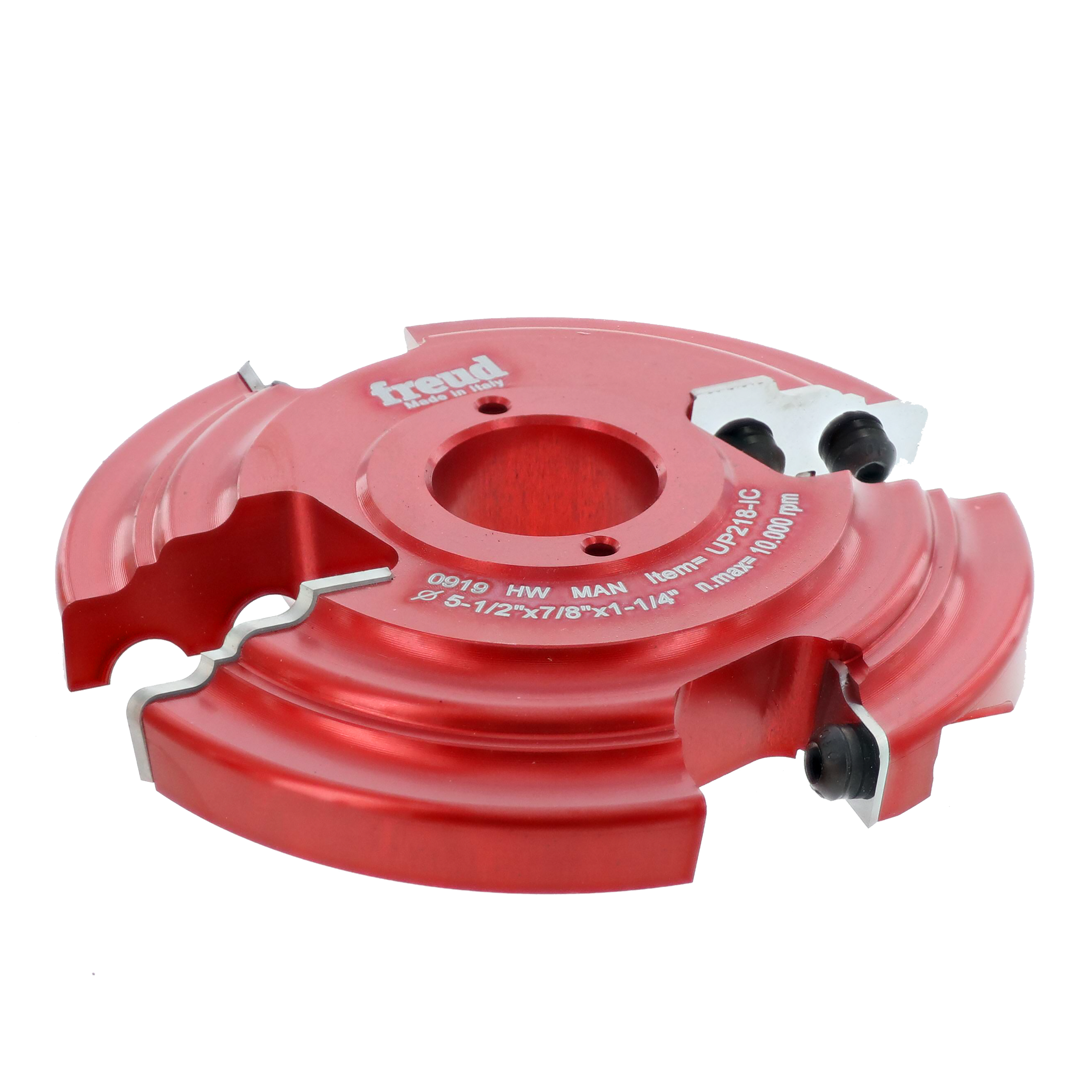

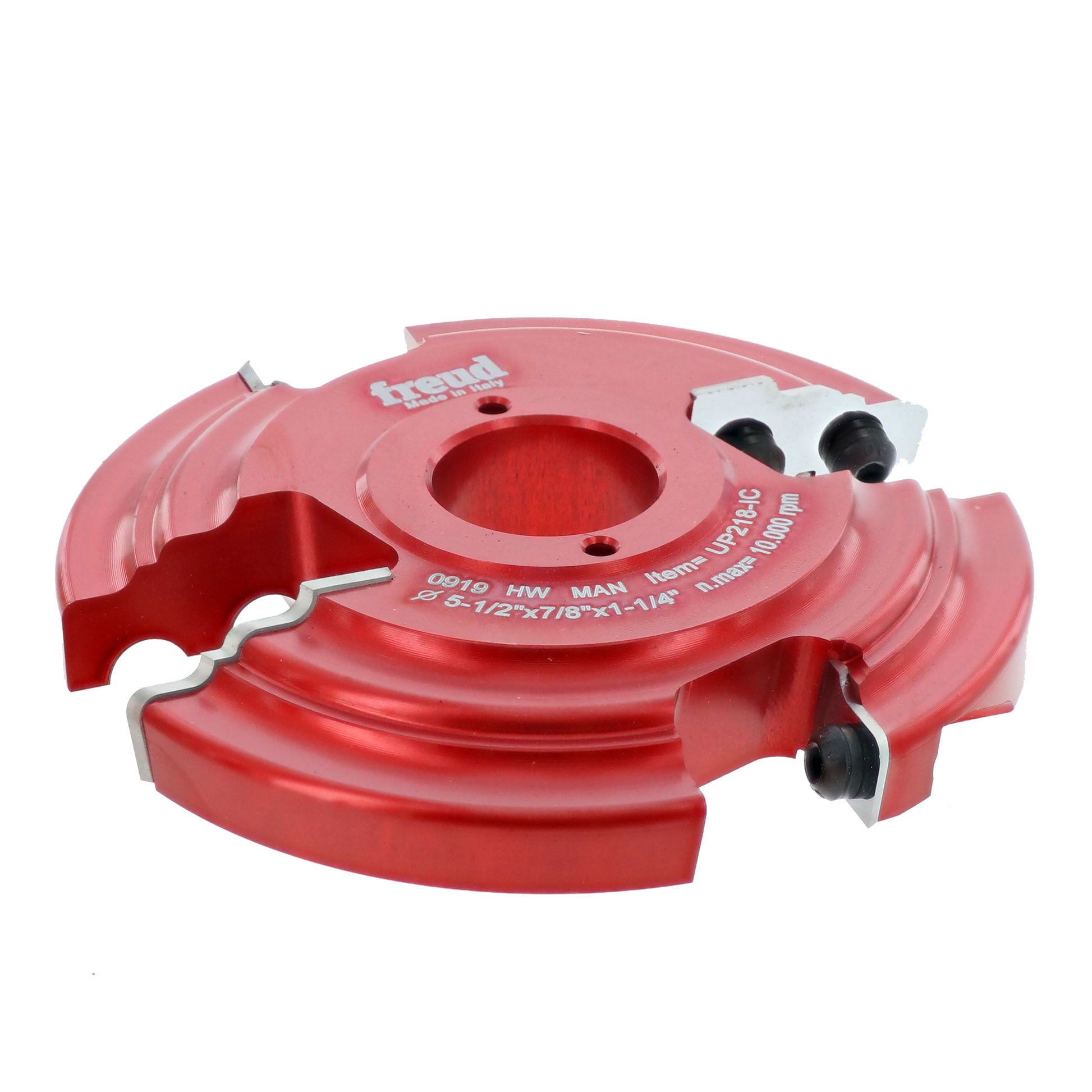

5-1/2" (Dia.) 2+2 Advanced Design Raised Panel Insert Shaper Cutter for 3/4" Stock with 1-1/4" bore

• Minor Height 1/4", Overall Dia. 5-1/2", Small Radius 9/64", Bore Diameter 1-1/4", Rub Collar Number RC10#, Carbide Height 5/8", Large Radius 5/32"
• Advanced 2+2 Cutting Design includes two large cutters that shear upward and two smaller cutters that shear downward for splinter-free, flawless finishes.
• Red Anodized Protective Coating protects the aluminum body from abrasion extending the life of the shaper cutter.
• Versatile Interchangeable Knives are easily interchanged during sharpenings for reduced tooling costs and minimal downtime.
• Exclusive Freud TiCo Hi-Density Micro-Grain Carbide blend of Titanium Cobalt carbide allows for a sharper cutting edge, with minimal wear for dramatically longer cutting life.
• Freud TiCo carbide tips have Superior Shear Angles that slices through wood fibers, leaving cross-grain cuts with virtually no sanding required.
• 3.0mm Thick Sharpener friendly carbide extends the shaper cutter's life through multiple sharpenings outlasting standard brazed carbide.
• Kickback-Reducing Shoulder Design restricts the tooth bite to 1.1mm, reducing the effects of overfeeding for more controlled, clean cuts.
• Ultimate Precision Computer Balancing with strict tolerances are achieved by using computer-based applications to balance all cutters for super smooth, chatter-free cutting.
• All 1-1/4" bore cutters can be used with back-cutters UP230-IC and UP231-IC when using 3/4" stock. All 3/4" bore cutters can be used with back-cutters UC230-IC and UC231-IC when using with 3/4" stock.

Weight	2.4 lb
Height	6.50 in.
Length	7.48 in.
Width	2.44 in.
Inventory Number	DIAUP218IC
MPN	UP218-IC
