8 mm (Dia.) Through Hole BitFrom the ManufacturerFreud's industrial carbide tipped through hole boring bits are designed for multiple spindle machines. The 10mm x 20mm shank are compatible with most boring machines. The 60 point makes for accurate hole location of through holes. Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods on automatic or manual multi-spindle boring machines. 8mm diameter, 57.5mm overall length, 27mm max hole depth, right hand rotation, 10mm shank.

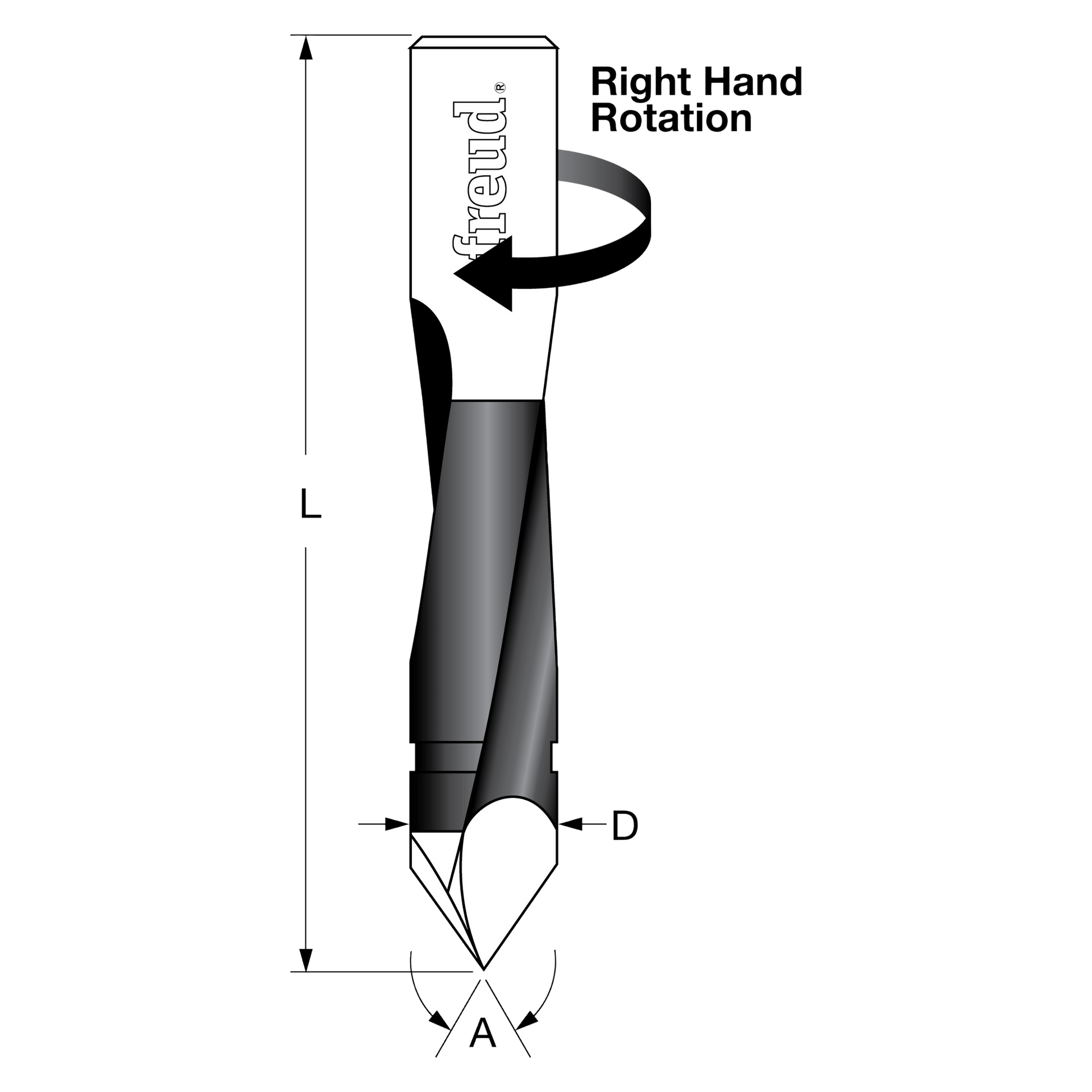

• Angle 60 , Diameter 8mm, Length 57.5mm, Max. Hole Depth 27mm, Rotation RH, Shank 10mm
• Industrial carbide tips
• Designed for superior performance and maximum life.
• Right Hand Rotation
• Freud's Limited Lifetime Guarantee

Weight	0.1 lb
Height	0.30 in.
Length	3.20 in.
Width	0.50 in.
Inventory Number	DIATH80057R
MPN	TH80057R
