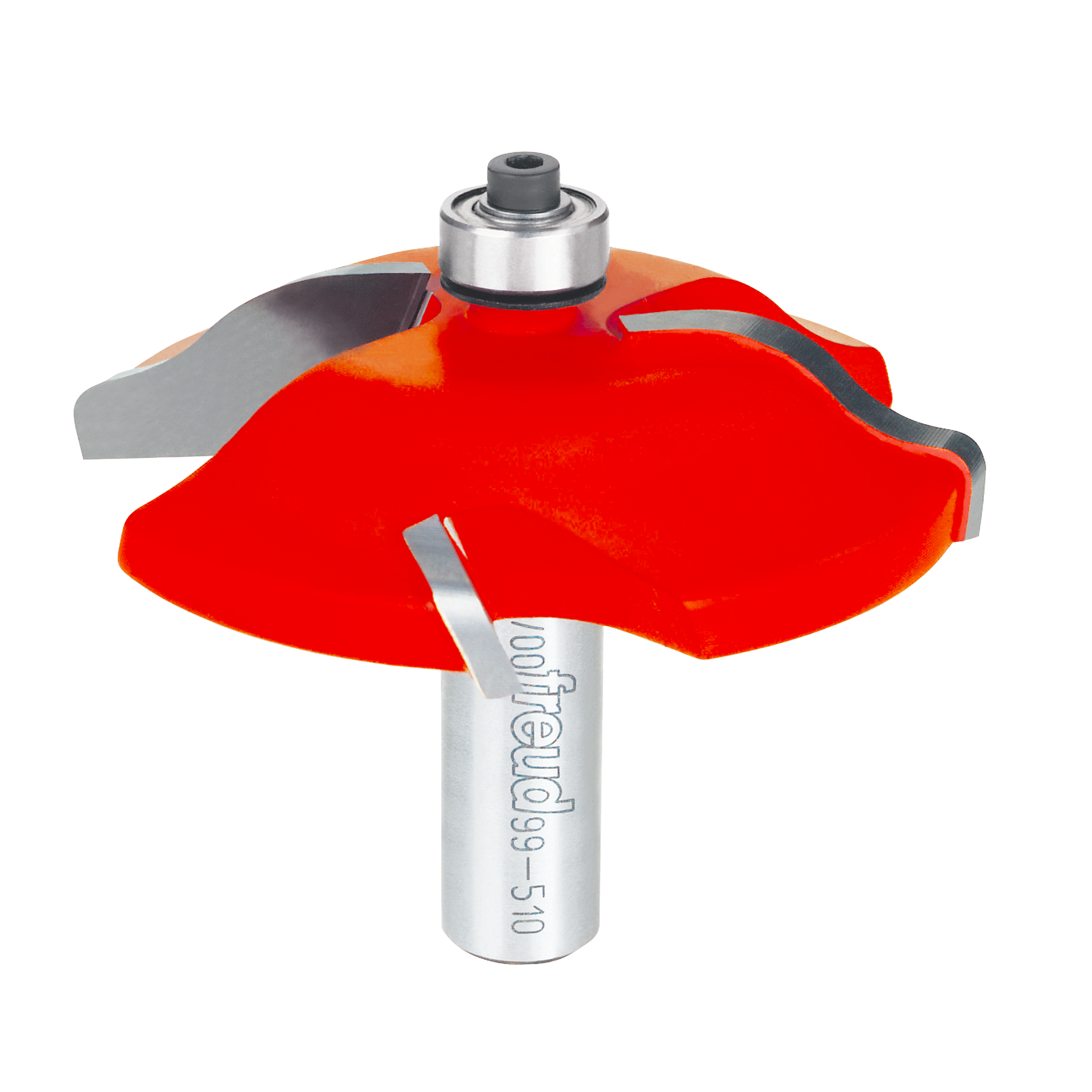

2-3/4" (Dia.) Raised Panel Bit (Quadra-Cut)From the ManufacturerFreud's exclusive 2+2 raised panel bits produce raised panels that are glass smooth, even on cross grain and never have the bothersome fine splinters at the top of the profile edge. Freud's engineers have set two wings to do the main cutting of the profile, while two others cut the top part of the profile. This leaves none of the fuzz associated with standard three-wing cutters. Overall diameter 2-3/4-inch, bearing diameter 1/2-inch, carbide height 5/8-inch, large radius 35/64-inch, overall length 2-1/2-inch.

• Large Radius 35/64", Minor Height 7/32", Number of Cutters 4, Overall Dia. 2-3/4", Overall Length 2-1/2", Shank Dia. 1/2", Small Radius 1/8", Carbide Height 5/8"
• Freud Raised Panel Bits feature patented Quadra-Cut technology for flawless finish
• Choose 1/2" carbide height for 5/8" stock. Use 5/8" height for 3/4" stock
• Use only in table-mounted routers with a fence
• Routs hardwood, softwood or composite panels
• Freud Perma-SHIELD Coating

Weight	1.03 lb
Height	3.80 in.
Length	5.70 in.
Width	4.50 in.
Inventory Number	DIA99510
MPN	99-510
