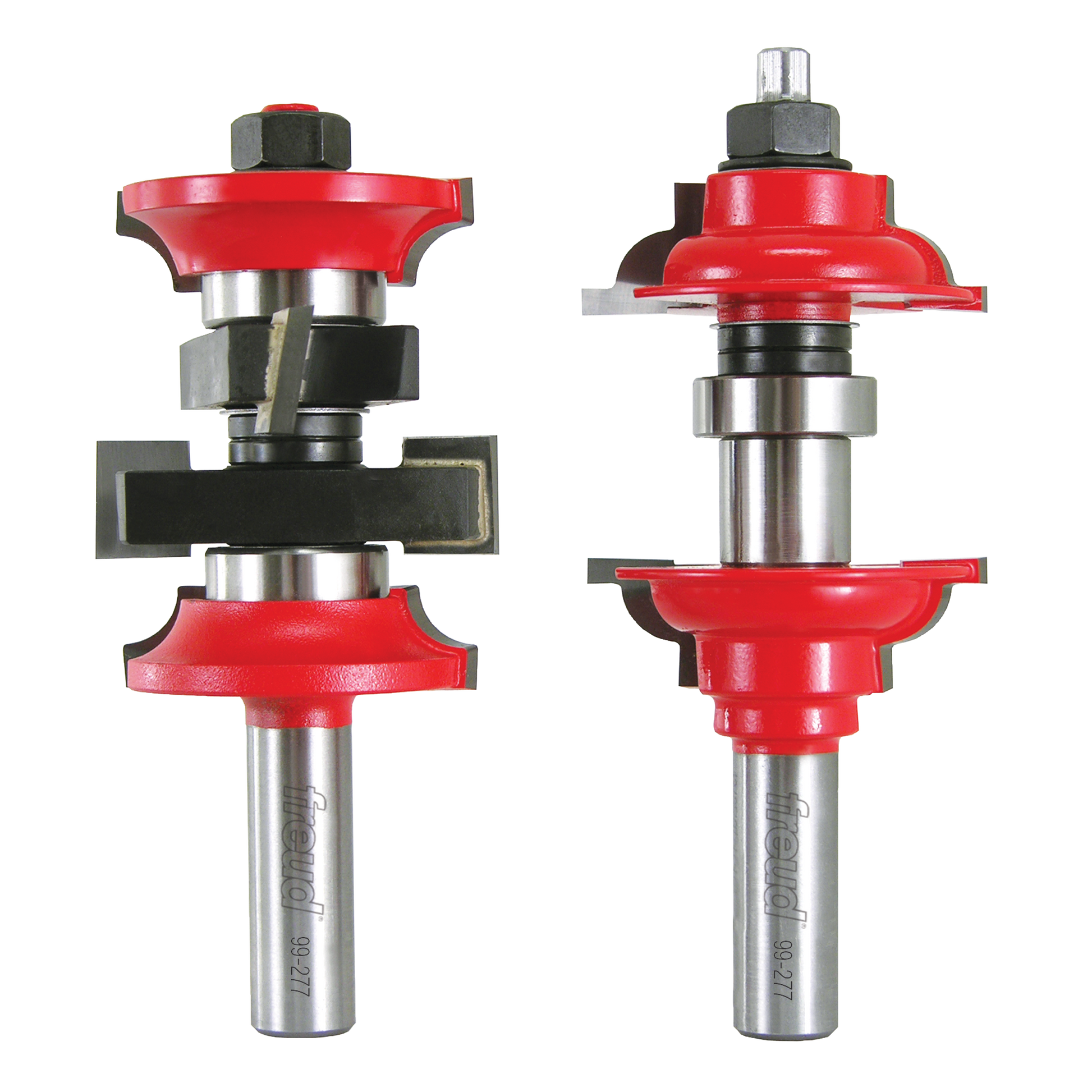

1-7/8" (Dia.) Entry & Interior Door Router Bit SystemFrom the ManufacturerThis Entry Door System lets the woodworker build doors with true mortise and tenon construction for rock-solid joints that last a lifetime. This matched rail and stile set comes fully assembled to mill perfectly 2" & 2-1/4" exterior doors. Milling a tenon of virtually any length is easy. Roundover profile. 1-7/8"" diameter, 2-3/8" carbide height, 1/2" shank, 4-19/32" overall length.

• Bearing Dia. 7/8", Number of Cutters 2, Overall Dia. 1-7/8", Overall Length 4-19/32", Shank Dia. 1/2", Carbide Height 2-3/8"
• Matched Rail and Stile Bit Sets come fully assembled to mill perfect joints in hard or soft wood
• Patented Freud system allows milling tenons of any length for extra-strong joints
• Three sets offered for 1-3/8" or 1-3/4" doors, or use Thick Stock Set for 2" to 2-1/4" doors
• Use on table-mounted portable routers
• Freud Perma-SHIELD Coating

Weight	3.97 lb
Height	4.00 in.
Length	8.60 in.
Width	5.20 in.
Inventory Number	DIA99277
MPN	99-277
