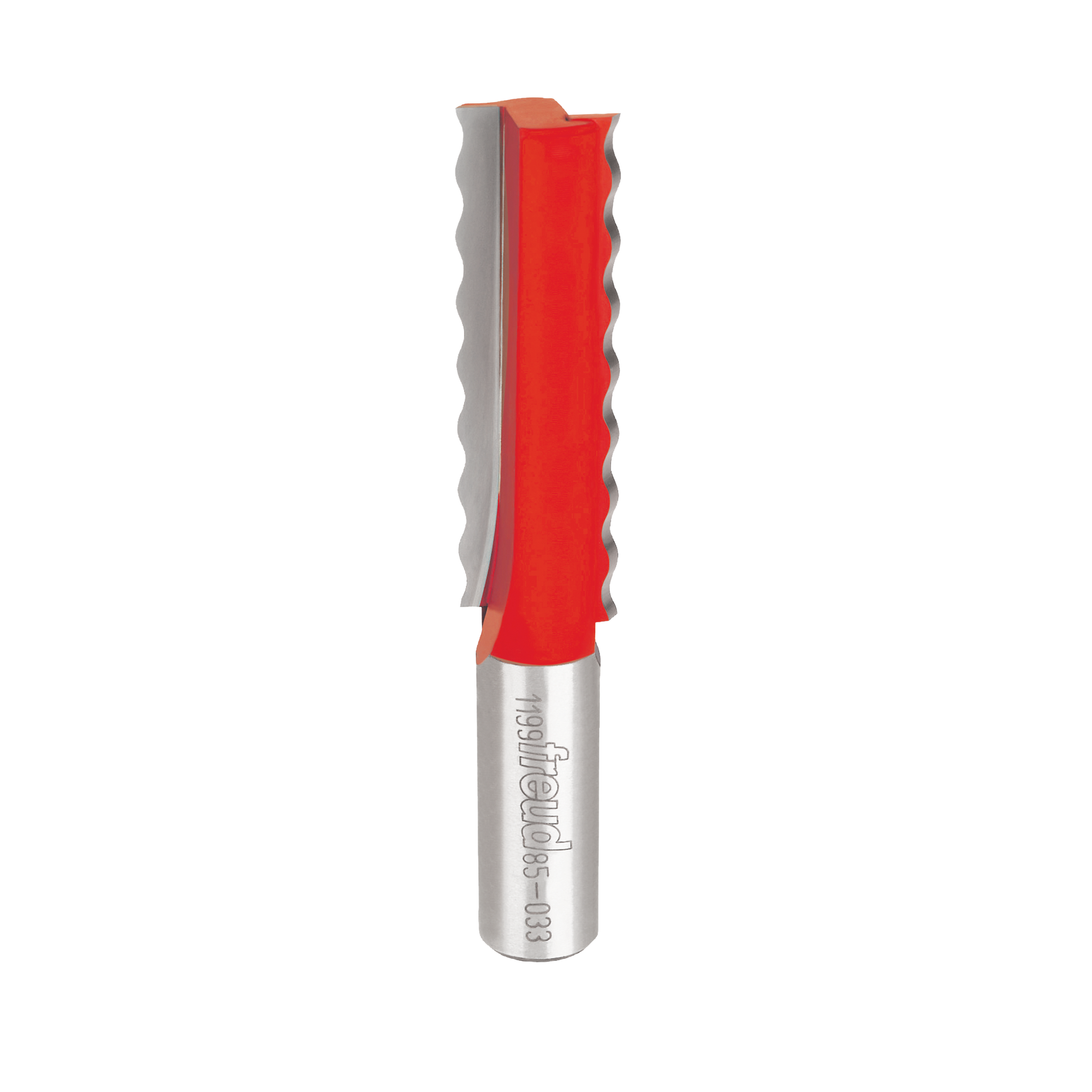

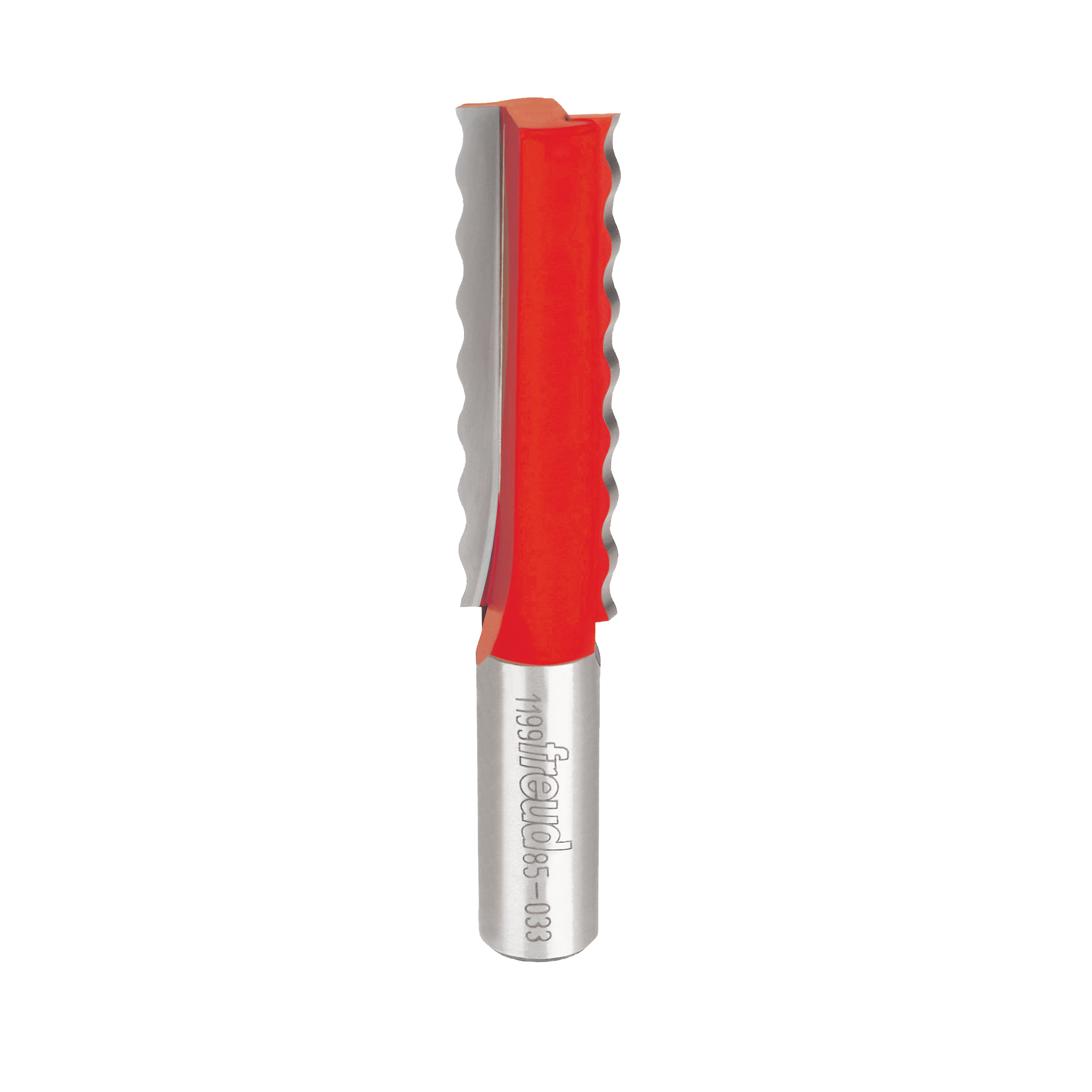

From the ManufacturerFreud's Wavy Joint Router Bit can't be beat for cutting wavy joint groves in solid surface material. Aside from their aesthetic appeal, waves also offer more surface area for glue, which means stronger, tighter joints and superb workpieces. An anti-kickback design means no more marring of the stock. Individually computer balanced and precision ground for the smoothest cuts, Freud backs up the Wavy Joint Bit with a limited lifetime warranty.FEATURESIdeal for cutting wavy joint groves in solid surface material Creates more surface area for glue for increased joint strength Anti-kickback design for reduced marring Individually computer balanced and precision ground for the smoothest cuts Covered by Freud's limited lifetime warrantySPECIFICATIONSOverall Diameter: 5/8" Small Diameter: 37/64" Carbide Height: 1-13/16" Shank Diameter: 1/2" Overall Length: 3-1/8"5/8" (Dia.) Wavy Joint Bit

• Minor Height 1/8", Number of Cutters 2, Overall Dia. 5/8", Overall Length 3-1/8", Shank Dia. 1/2", Small Dia. 37/64", Carbide Height 1-13/16"
• Increase gluing area for a stronger joint
• Cuts all solid surface materials
• Use on hand-held routers equipped with edge guides, or table-mounted routers
• Specially formulated carbide is ideal for fabricating solid surface materials

Weight	0.23 lb
Height	2.30 in.
Length	5.50 in.
Width	3.10 in.
Inventory Number	DIA85033
MPN	85-033
