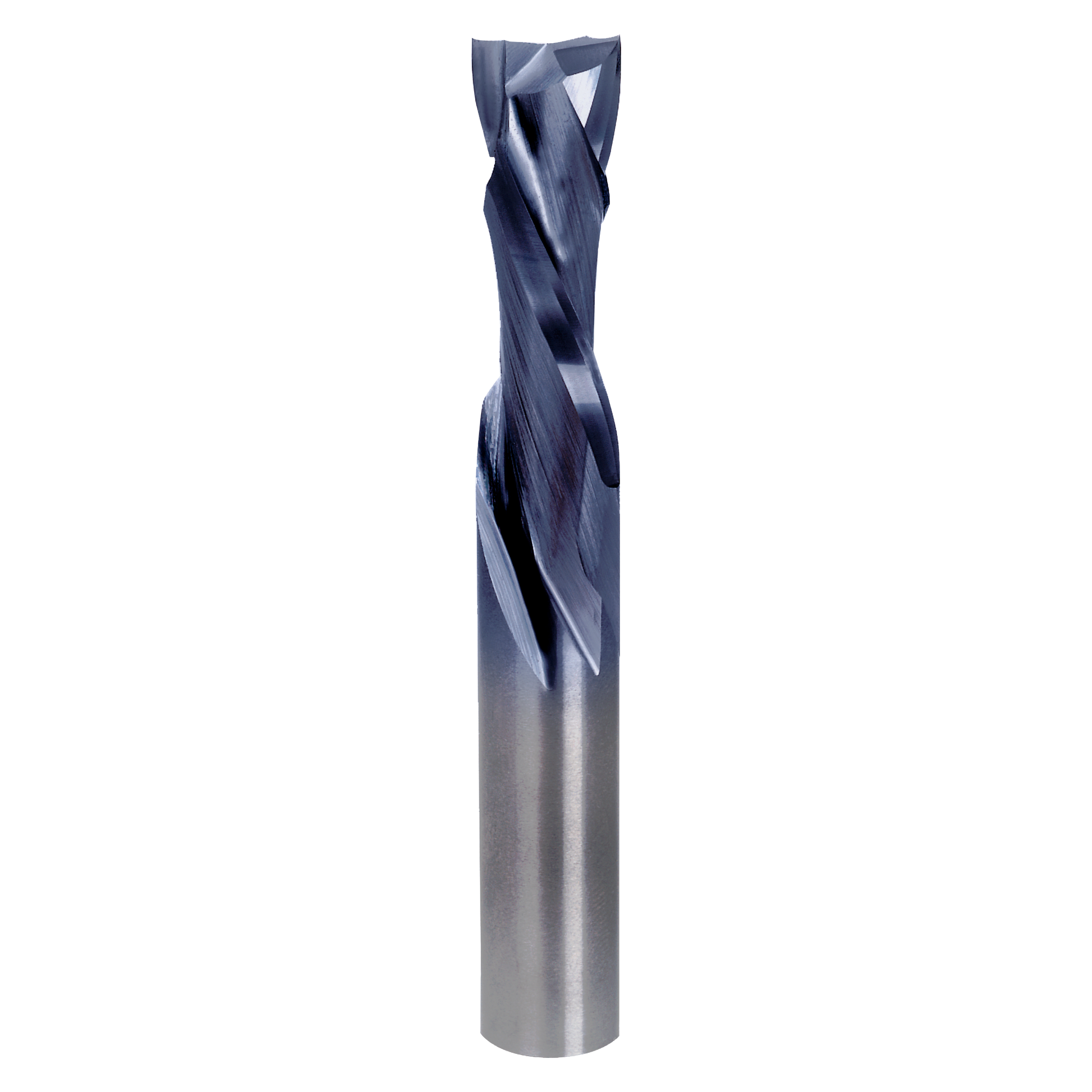

1/2" (Dia.) Double Compression BitFrom the Manufacturer1/2" Double Compression Bit 1 1/2"carbide cut height 1/2"shank solid carbide. Combination of up and down shear flutes eliminate chipping on both sides of double-sided veneers and laminates for a fine finish.

• Number of Cutters 2, Overall Dia. 1/2", Overall Length 3-1/2", Shank Dia. 1/2", Carbide Height 1-1/2", Upcut Length 11/32"
• Clean, chip free cuts in double-sided materials
• Combine up shear and down shear cutting action
• Black I.C.E. coating for cool cutting edge and superior chip evacuation
• Freud Premier Solid Carbide
• Black I.C.E. + Freud TiCo Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
• Freud micrograin carbide for long life
• Anti-kickback design for safety
• Shear angle design produces superior finish
• Multi-axis grinding for burn free cuts

Weight	0.32 lb
Height	0.95 in.
Length	4.90 in.
Width	1.00 in.
Inventory Number	DIA77209
MPN	77-209
