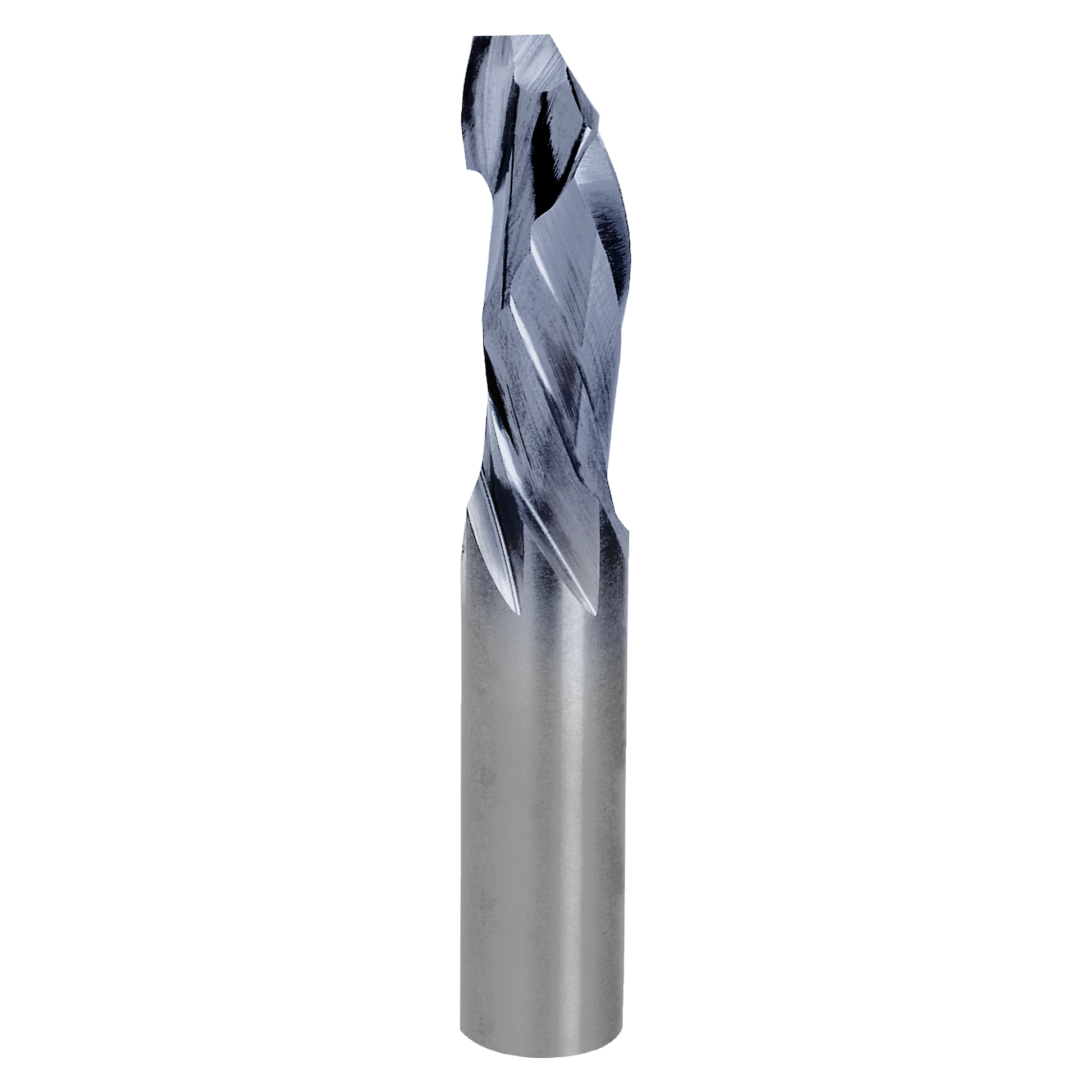

1/2" (Dia.) Single Compression BitFrom the Manufacturer1/2"diameter Single Compression Bit 1 1/4"carbide cut height 1/2"shank solid carbide. Combination of up and down shear flutes eliminate chipping on both sides of double-sided veneers and laminates.

• Number of Cutters 1, Overall Dia. 1/2", Overall Length 3", Shank Dia. 1/2", Carbide Height 1-1/4", Upcut Length 11/32"
• Fast, chip-free routing in double-sided materials
• Use on CNC routers as well as hand-held and table-mounted portable routers
• Black I.C.E. coating for cool cutting edge and superior chip evacuation
• Freud Premier Solid Carbide
• Black I.C.E. + Freud TiCo Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits

Weight	0.24 lb
Height	0.75 in.
Length	3.80 in.
Width	0.75 in.
Inventory Number	DIA77108
MPN	77-108
