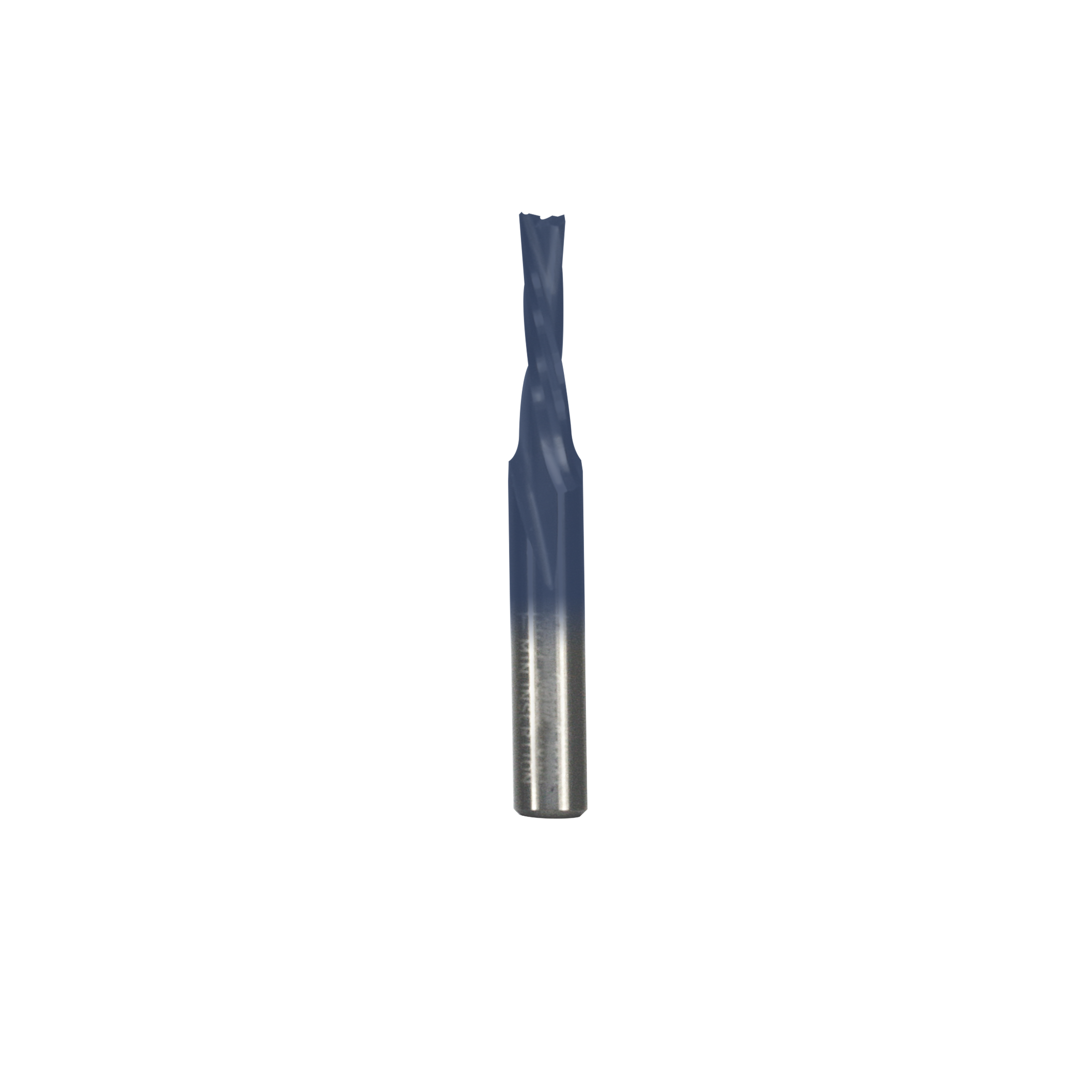

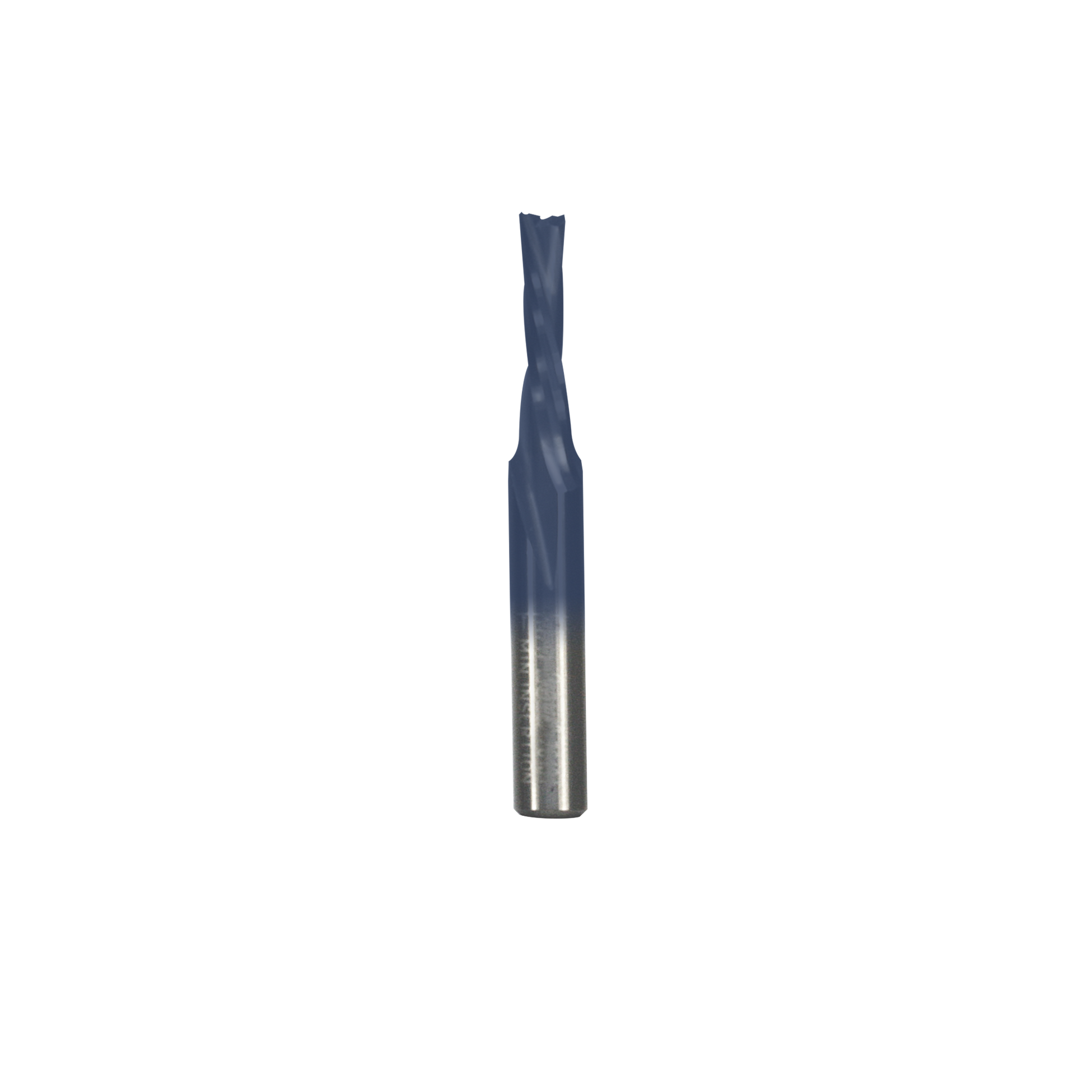

3/16" (Dia.) Down Spiral BitFrom the Manufacturer3/16"diameter Down Spiral Bit 3/4"carbide cut height 1/4"shank solid carbide. Ideal for grooves,dadoes, and chip free routing in single-sided veneers and laminates where chip removal is not a problem.

• Number of Cutters 2, Overall Dia. 3/16", Overall Length 2", Shank Dia. 1/4", Carbide Height 3/4"
• Chip free cuts on top surface of laminates and veneer panels
• Use in CNC, hand-held and table-mounted routers
• Black I.C.E. coating for cool cutting edge and superior chip evacuation
• Freud Premier Solid Carbide
• Black I.C.E. + Freud TiCo Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits

Weight	0.07 lb
Height	4.63 in.
Length	0.75 in.
Width	2.50 in.
Inventory Number	DIA76101
MPN	76-101
